Driver Power Seat Track
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

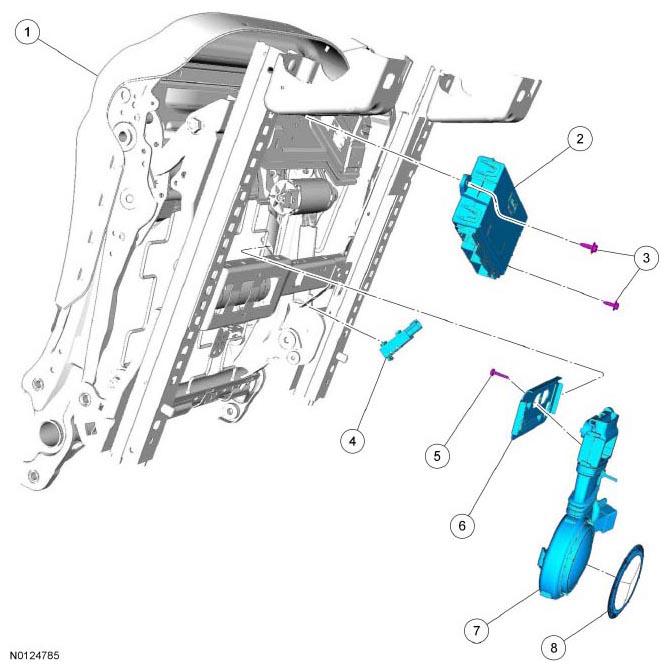

| Item | Part Number | Description |
|---|---|---|
| 1 | 61710 | Seat track |
| 2 | 14C708 | DSM |
| 3 | W505153 | Screws (2 required) |
| 4 | 14B416 | Seat track position sensor. |
| 5 | - | Cushion TED adapter plate screw (part of 19N550) |
| 6 | - | Cushion TED adapter plate (part of 19N550) |
| 7 | 19N550 | Cushion TED |
| 8 | 19E880 | TED filter |
- For additional information, refer to the appropriate procedures in this service information.
