Transmission Control Module (TCM): Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The Transmission Control Module (TCM) is located on the left frame rail under the cab.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. NOTE: Keep the Transmission Control Module (TCM) electrical connector straight when disconnecting it or damage the connector terminals can occur.

    Slide the lock tab out to unlock the Transmission Control Module (TCM) electrical connector and disconnect the TCM electrical connector.

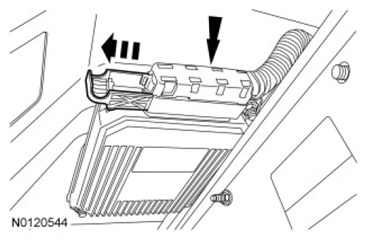

    Fig 1: Disconnecting Transmission Control Module Electrical Connector
    G07482890Courtesy of FORD MOTOR CO.
  3. Remove and discard the 2 nuts and remove the TCM.

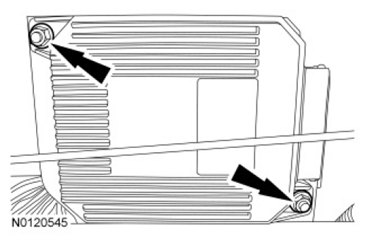

    Fig 2: Locating Transmission Control Module Mounting Nuts
    G07482891Courtesy of FORD MOTOR CO.
