Transmission Control Module (TCM): Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the TCM in place and install 2 new nuts.
    • Tighten to 19 Nm (168 lb-in).
      Fig 1: Locating Transmission Control Module Mounting Nuts
      G07482891Courtesy of FORD MOTOR CO.
  2. NOTE: Keep the Transmission Control Module (TCM) electrical connector straight when connecting it or damage the connector terminals can occur.

    Connect the TCM electrical connector and slide the lock tab in to lock the connector.

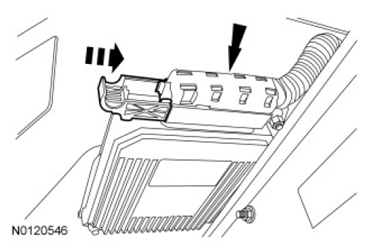

    Fig 2: Connecting Transmission Control Module Electrical Connector
    G07482893Courtesy of FORD MOTOR CO.
  3. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION .
  4. Using the scan tool, download the solenoid body strategy. For additional information, refer to SOLENOID BODY STRATEGY .
