Shift Solenoids (SS): Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan. Refer to TRANSMISSION FLUID PAN .
  2. Disconnect the solenoid electrical connector(s) for the solenoid(s) being serviced.
    Fig 1: Locating Solenoid Electrical Connectors
    G07482822Courtesy of FORD MOTOR CO.
  3. Remove the 7 bolts and remove the solenoid retainer.
    Fig 2: Locating Solenoid Retainer Bolts
    G07482823Courtesy of FORD MOTOR CO.
  4. NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the replacement solenoid type (normally high/normally low) and the band number with the original solenoid or harsh/erratic shifts, harsh/soft engagement or damage to the transmission can occur.

    If replacing more then 1 solenoid, number the solenoids and number the main control solenoid ports to correspond to the solenoid. Pull the solenoid(s) out of the main control valve body.

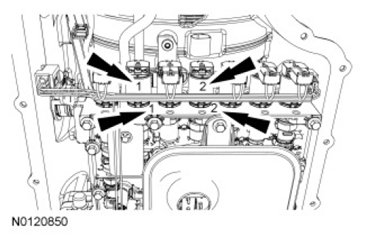

    Fig 3: Locating Solenoids
    G07482824Courtesy of FORD MOTOR CO.
  5. Remove the solenoid(s) from the solenoid body.
