Output Shaft Seal - Slip Yoke: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driveshaft. For additional information, refer to DRIVESHAFT .
  2. Using the Torque Converter Fluid Seal Remover and the Slide Hammer, remove the output shaft seal.

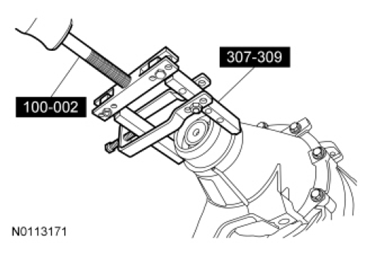

    Fig 1: Removing Output Shaft Seal Using Torque Converter Fluid Seal Remover And Slide Hammer
    G07482955Courtesy of FORD MOTOR CO.
