Main Control: Material
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) |
MERCON® LV |

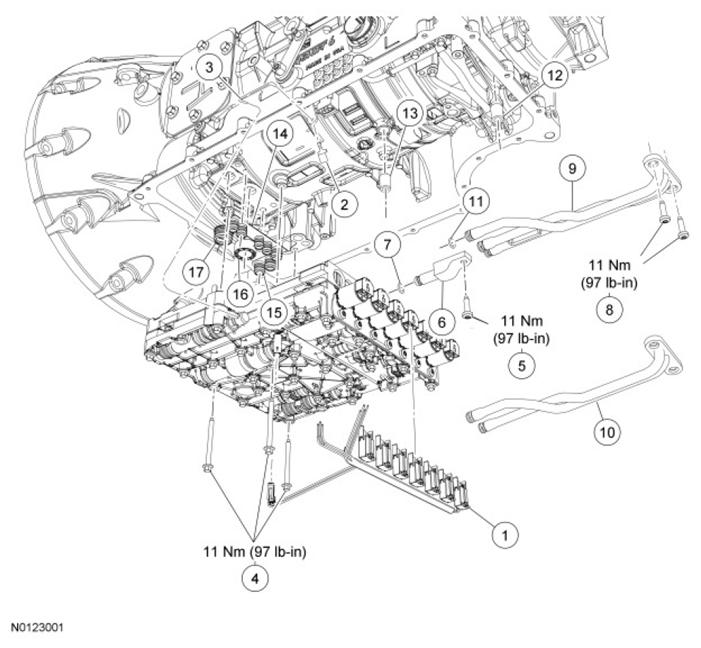

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G276 | Transmission internal wiring harness |
| 2 | 7H557 | Manual valve rod clip |
| 3 | 7N049 | Manual valve rod |
| 4 | W707887 | Main control-to-transmission case bolts |
| 5 | W505584 | Intermediate clutch feed tube bolt |
| 6 | 7A209 | Intermediate clutch feed tube |
| 7 | 7J227 | Intermediate clutch feed tube O-ring |
| 8 | W505584 | Feed tube bolt |
| 9 | 7A209 | Feed tube assembly (3 tube slip yoke transmissions) |
| 10 | 7H420 | Feed tube assembly (2 tube fixed flange/Four-Wheel Drive (4WD) transmissions |
| 11 | 7J227 | Feed tube O-ring |
| 12 | 7G199 | Feed tube seals (7G199B shown in illustration, 7G199C similar with different dimensions) |
| 13 | 7G199 | Intermediate clutch feed tube seal |
| 14 | 7H249 | Clutch feed seal |
| 15 | 7H249 | Torque Converter Clutch (TCC) feed seal |
| 16 | 7H249 | Pump inlet seal |
| 17 | 7H249 | Pump outlet seal |
