Internal Harness Service: Material
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) |
MERCON® LV |

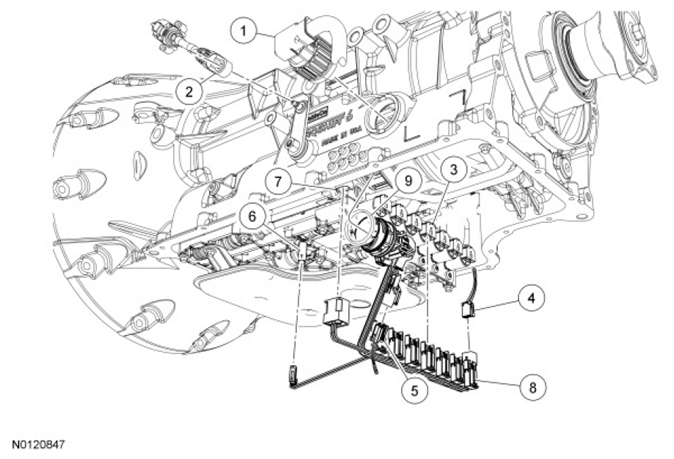

| Item | Part Number | Description |
|---|---|---|
| 1 | 15525 | Vehicle wiring harness |
| 2 | 7E395 | Selector lever cable |
| 3 | 7G383 | Shift solenoids |
| 4 | 7H103 | TSS sensor |
| 5 | 7H103 | OSS sensor |
| 6 | 7H141 | TFT sensor |
| 7 | 7H557 | TR sensor |
| 8 | 7G276 | Internal wiring harness |
| 9 | 10C930 | Transmission internal wiring harness bulkhead O-ring |
