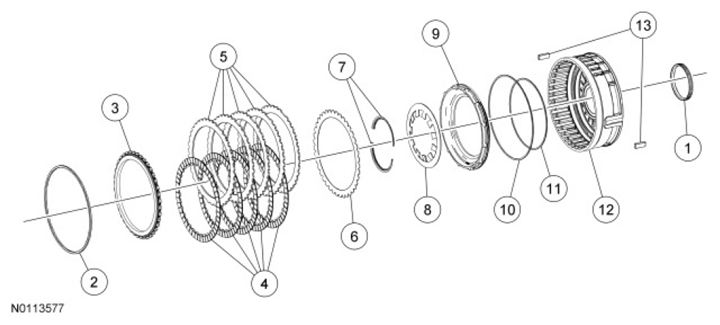

Intermediate (2, 6) Clutch Assembly
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7F373 | Intermediate (2, 6) clutch center support bearing |
| 2 | 7D483 | Intermediate (2, 6) clutch pack snap ring |
| 3 | 7B066 | Intermediate (2, 6) clutch pressure plate |
| 4 | 7B164 | Intermediate (2, 6) clutch internal splined friction plates |
| 5 | 7B442 | Intermediate (2, 6) clutch external splined steel plates |
| 6 | 7E085 | Intermediate (2, 6) clutch wave spring |
| 7 | 7B043 | Intermediate (2, 6) clutch 2-piece retaining ring |
| 8 | 7A480 | Intermediate (2, 6) clutch return spring |
| 9 | 7E005 | Intermediate (2, 6) clutch piston |
| 10 | 7F224 | Intermediate (2, 6) clutch outer piston seal |
| 11 | 7F225 | Intermediate (2, 6) clutch inner piston seal |
| 12 | 7A130 | Intermediate (2, 6) clutch center support |
| 13 | - | Intermediate (2, 6) clutch center support alignment lugs (part of 7A130) |
