Forward (1, 2, 3, 4) Clutch Assembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

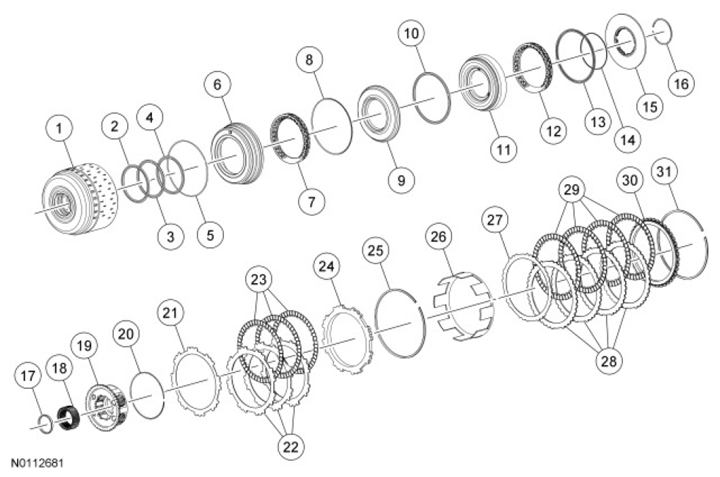

Fig 1: Exploded View Of Forward (1, 2, 3, 4) Clutch Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7A360	Forward (1, 2, 3, 4) clutch cylinder
2	7F234	Direct (3, 5, R) clutch piston inner seal
3	7C000	Direct (3, 5, R) clutch balance piston inner seal
4	7G242	Forward (1, 2, 3, 4) clutch piston inner seal
5	7C000	Direct (3, 5, R) clutch balance piston outer seal
6	7A262	Direct (3, 5, R) clutch piston
7	7F235	Direct (3, 5, R) clutch piston return spring
8	7C000	Direct (3, 5, R) clutch balance piston outer seal
9	7A262	Direct (3, 5, R) clutch balance piston
10	7F227	Forward (1, 2, 3, 4) clutch piston outer seal
11	7L140	Forward (1, 2, 3, 4) clutch piston
12	7F230	Forward (1, 2, 3, 4) clutch piston return spring
13	7A548	Forward (1, 2, 3, 4) clutch balance piston outer seal
14	7C099	Forward (1, 2, 3, 4) clutch balance piston inner seal
15	7H360	Forward (1, 2, 3, 4) clutch balance piston
16	7H365	Forward (1, 2, 3, 4) clutch balance piston retaining ring
17	7A527	Front planetary gearset selective shim
18	7D063	Front planetary sun gear
19	7A398	Front planetary carrier
20	7D483	Front planetary carrier snap ring
21	7B070	Forward (1, 2, 3, 4) clutch wave spring
22	7B164	Forward (1, 2, 3, 4) clutch steel plates
23	7B442	Forward (1, 2, 3, 4) clutch plates
24	7B066	Forward (1, 2, 3, 4) clutch pressure plate
25	7D483	Forward (1, 2, 3, 4) clutch snap ring
26	7G341	Direct (3, 5, R) clutch apply ring
27	7E085	Direct (3, 5, R) clutch wave spring
28	7B442	Direct (3, 5, R) clutch steel plates
29	7B164	Direct (3, 5, R) clutch plates
30	7B066	Direct (3, 5, R) clutch pressure plate
31	7D483	Direct (3, 5, R) clutch snap ring
