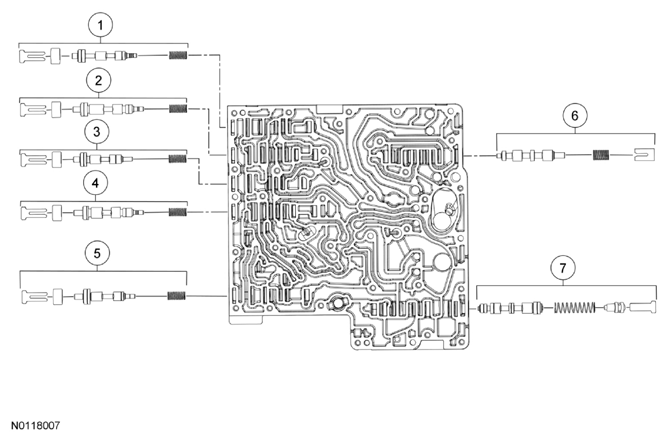

Upper Valve Body
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Description |
| 1 |
Overdrive (4, 5, 6) clutch regulator valve |
| 2 |
Intermediate (2, 6) clutch regulator valve |
| 3 |
Forward (1, 2, 3, 4) clutch regulator valve |
| 4 |
Direct (3, 5, R) clutch regulator valve |
| 5 |
Low/reverse clutch regulator valve |
| 6 |
TCC charge control valve |
| 7 |
TCC apply regulator valve |
