Main Control - Overhaul: Solenoids
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

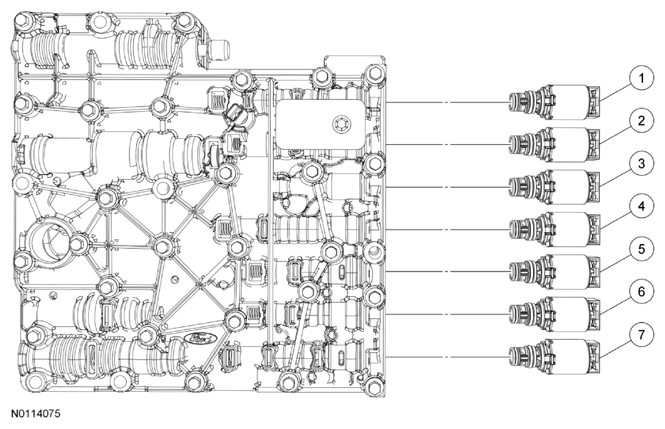

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G383 | SSD Low/reverse (1, R) clutch, normally low |
| 2 | 7G383 | LPC solenoid, normally high |
| 3 | 7G383 | TCC solenoid, normally low |
| 4 | 7G383 | SSB Direct (3, 5, R) clutch, normally high |
| 5 | 7G383 | SSA Forward (1, 2, 3, 4) clutch, normally low |
| 6 | 7G383 | SSC, Intermediate (2, 6) clutch, normally low |
| 7 | 7G383 | SSE, Overdrive (4, 5, 6) clutch, normally high |
