Main Control - Overhaul: Material
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) |
MERCON® LV |

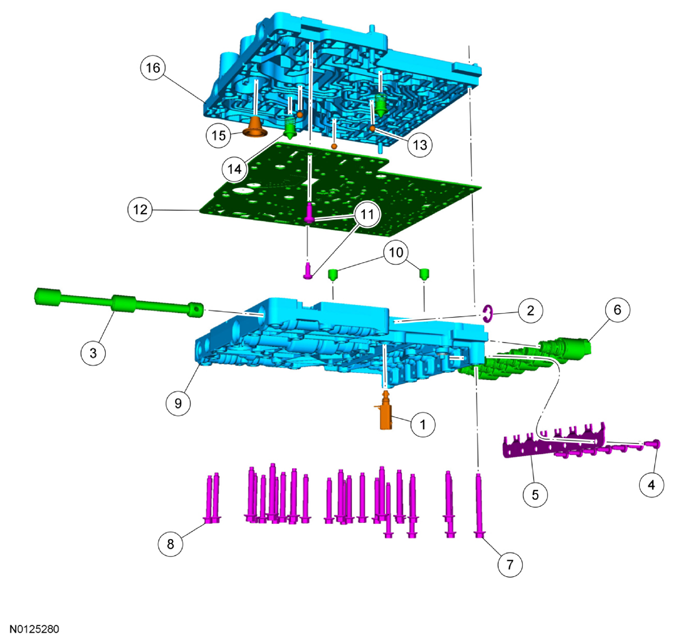

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H141 | TFT sensor |
| 2 | - | Manual control valve E-clip (part of 7A100) |
| 3 | - | Manual control valve (part of 7A100) |
| 4 | - | Solenoid retainer bolts (part of 7A100) |
| 5 | - | Solenoid retainer (part of 7A100) |
| 6 | 7G383 | Solenoids |
| 7 | - | Main control bolts, 60 mm (2.362 in) (4 required) (part of 7A100) |
| 8 | W500303 | Main control bolts, 45 mm (1.771 in) (22 required) |
| 9 | - | Lower valve body (part of 7A100) |
| 10 | 7J191 | Transmission solenoid damper valve assembly (2 required) |
| 11 | - | Separator plate bolts (part of 7A100) |
| 12 | 7Z490 | Separator plate |
| 13 | 7E195 | Check balls (3 required) |
| 14 | 7D142 | Relief valves (2 required) |
| 15 | - | Valve inlet nozzle (part of 7A100) |
| 16 | - | Upper valve body (part of 7A100) |
