Center Support: Assembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

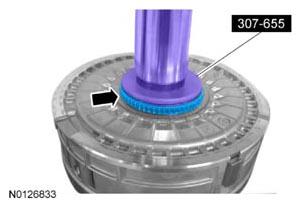

  1. Using the Center Support Bearing Installer, press a new bearing on the center support assembly.
    G07972649

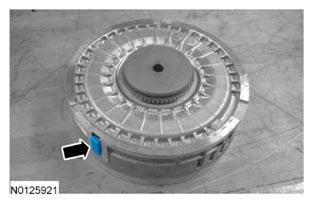

  2. Inspect the center support alignment lugs to be sure they are installed securely in the center support. If the center support alignment lugs are loose, use grease to hold them in place.
    G07972650
