Pinpoint Test A: Transmission Control Solenoids

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If the scan tool is unable to access the transmission PIDs, REFER to the INTRODUCTION - DIESEL MODELS or ENGINE CONTROLS - INTRODUCTION (EXCEPT DIESEL & HYBRID) (SECTION 0) .
NOTE: Read and record all DTCs.
  1. A1 CHECK THE SOLENOID POWER CIRCUITS FOR VOLTAGE
    • Ignition OFF.
    • Disconnect: Transmission C1623.
    • Inspect the connector for damaged or pushed out terminals, corrosion, loose wires and missing or damaged seals.
    • Ignition ON.
    • Measure the voltage from the transmission vehicle harness C1623-1 circuit CET25 (BU/GN) and C1623-2 circuit CET25 (BU/GN) harness side to ground.
      Fig 1: Measuring Voltage From Transmission Vehicle Harness C1623-1 And C1623-2 Circuit CET25 (BU/GN) Harness Side To Ground
      G07482730Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : GO to  A4.
    • No  : GO to A2.
  2. A2 CHECK THE SOLENOID POWER CIRCUITS FOR AN OPEN
    • Ignition OFF.
    • Disconnect: PCM C175T.
    • Inspect the connector for damaged or pushed out terminals, corrosion, loose wires and missing or damaged seals.
    • Measure the resistance from the PCM C175T-50 to transmission vehicle harness C1623-1 and C1623-2 circuit CET25 (BU/GN).

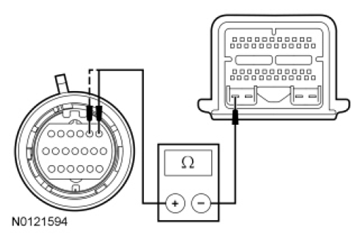

      Fig 2: Measuring Resistance From PCM C175T-50 To Transmission Vehicle Harness C1623-1 And C1623-2 Circuit CET25 (BU/GN)
      G07482731Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to A3.
    • No  : REPAIR transmission vehicle harness circuit which measured greater than 5 ohms. CLEAR the DTC's. TEST the system for normal operation. If DTC P0657 or DTC P2669 returns, REPLACE the PCM.
  3. A3 CHECK THE SOLENOID POWER CIRCUITS FOR A SHORT TO GROUND
    • Measure the resistance from the PCM C175T-50, circuit CET25 (BU/GN) of the transmission vehicle harness to ground.
      Fig 3: Measuring Resistance From PCM C175T-50, Circuit CET25 (BU/GN) Of Transmission Vehicle Harness To Ground
      G07482732Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to A4.
    • No  : REPAIR transmission vehicle harness circuit CET25 (BU/GN) for a short to ground. CLEAR the DTC's. TEST the system for normal operation. If DTC P0657 or DTC P2669 returns, REPLACE the PCM.
  4. A4 CHECK THE SOLENOID CONTROL CIRCUITS FOR AN OPEN
    • Ignition OFF.
    • Disconnect: PCM C175T.
    • Inspect the connector for damaged or pushed out terminals, corrosion, loose wires and missing or damaged seals.
    • Measure the resistance of the solenoid circuit between the PCM C175T and transmission vehicle harness C1623 using the following chart.
      Transmission Control Circuit PCM
      C1623-3 Shift Solenoid A (SSA) CET05 (BU/GN) C175T-43
      C1623-4 Shift Solenoid B (SSB) CET06 (GN/BN) C175T-44
      C1623-5 Shift Solenoid C (SSC) CET07 (GY/OG) C175T-45
      C1623-6 Shift Solenoid D (SSD) CET08 (BN/WH) C175T-10
      C1623-7 Shift Solenoid E (SSE) CET09 (YE/VT) C175T-34
      C1623-8 Pressure Control Solenoid A (PCA) CET49 (BN) C175T-46
      C1623-9 Torque Converter Clutch (TCC) CET50 (WH/OG) C175T-42
    • Is the resistance less than 5 ohms?
    • Yes  : GO to A5.
    • No  : REPAIR the transmission vehicle harness circuit which measured greater than 5 ohms. CLEAR the DTCs. TEST the system for normal operation.
  5. A5 CHECK THE SOLENOID CONTROL CIRCUITS FOR A SHORT TO GROUND
    • Measure the resistance between the PCM C175T, harness side and ground using the following chart.
      PCM Control Circuit Ground
      C175T-43 SSA CET05 (BU/GN) Ground
      C175T-44 SSB CET06 (GN/BN) Ground
      C175T-45 SSC CET07 (GY/OG) Ground
      C175T-10 SSD CET08 (BN/WH) Ground
      C175T-34 SSE CET09 (YE/VT) Ground
      C175T-46 PCA CET49 (BN) Ground
      C175T-42 TCC CET50 (WH/OG) Ground
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to A6.
    • No  : REPAIR the transmission vehicle harness circuit shorted to ground. CLEAR the DTCs. TEST the system for normal operation.
  6. A6 CHECK THE SOLENOID CONTROL CIRCUITS FOR A SHORT TO POWER
    • Connect: PCM C175T.
    • Ignition ON.
    • Measure for voltage between the transmission vehicle harness C1623, harness side and ground using the following chart.
      Transmission Control Circuit Ground
      C1623-3 SSA CET05 (BU/GN) Ground
      C1623-4 SSB CET06 (GN/BN) Ground
      C1623-5 SSC CET07 (GY/OG) Ground
      C1623-6 SSD CET08 (BN/WH) Ground
      C1623-7 SSE CET09 (YE/VT) Ground
      C1623-8 PCA CET49 (BN) Ground
      C1623-9 TCC CET50 (WH/OG) Ground
    • Is the voltage greater than 3 volts?
    • Yes  : REPAIR the transmission vehicle harness circuit shorted to power. CLEAR the DTCs. TEST the system for normal operation.
    • No  : GO to A7.
  7. A7 CHECK TRANSMISSION INTERNAL HARNESS FOR A SHORT TO GROUND
    • Measure the resistance between the transmission vehicle harness C1623, component side and ground using the following chart.
      Transmission Solenoid Ground
      C1623-1 Solenoid power 2 Ground
      C1623-2 Solenoid power 1 Ground
      C1623-3 SSA Ground
      C1623-4 SSB Ground
      C1623-5 SSC Ground
      C1623-6 SSD Ground
      C1623-7 SSE Ground
      C1623-8 PCA Ground
      C1623-9 TCC Ground
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to A8.
    • No  : REPLACE the transmission internal harness. CLEAR the DTCs. TEST the system for normal operation.
  8. A8 CHECK THE TRANSMISSION INTERNAL HARNESS/COMPONENT RESISTANCE FOR AN OPEN
    • Measure the resistance between the transmission vehicle harness C1623, component side power circuit terminal and control circuit terminal using the following chart.
      Transmission Solenoid Transmission
      C1623-2 SSA C1623-3
      C1623-2 SSC C1623-5
      C1623-2 SSE C1623-7
      C1623-1 PCA C1623-8
      C1623-1 TCC C1623-9
      C1623-1 SSB C1623-4
      C1623-1 SSD C1623-6
    • Is the resistance measurement between 4.8 and 5.4 ohms?
    • Yes  : Refer to MAIN CONTROL - OVERHAUL  to INSPECT for stuck valves or debris.

      If no problems are found, REPLACE suspected solenoid.

      CLEAR the DTCs. TEST the system for normal operation.

    • No  : INSPECT the transmission internal harness for an open. If an open circuit is not found, REPLACE the faulty component. CLEAR the DTCs. TEST the system for normal operation.
