Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |

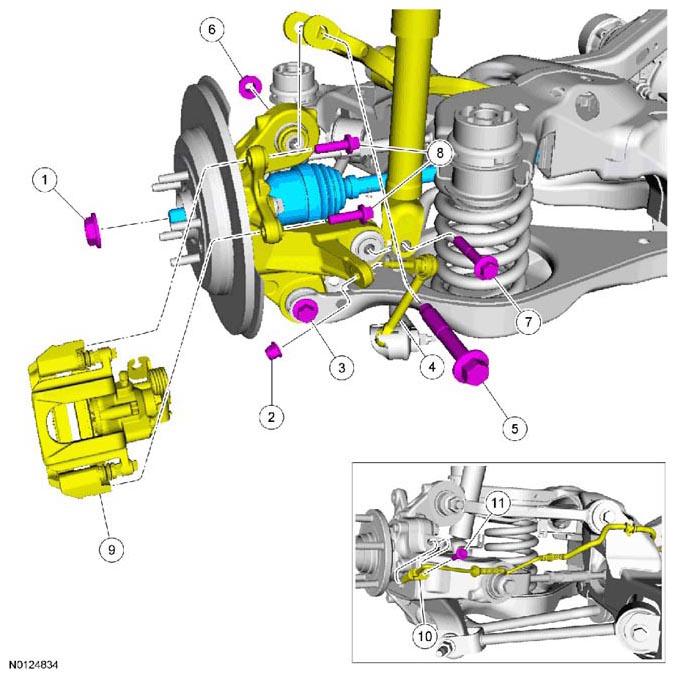

| 1 |
W712435 |
Wheel hub nut |
- |
- |
Refer to HALFSHAFT |
| 2 |
W520213 |
Stabilizer bar link upper nut |
- |
- |
55 Nm (41 lb-ft) |
| 3 |
W715127 |
Lower arm-to-wheel knuckle bolt |
- |
- |
265 Nm (195 lb-ft) |
| 4 |
5A972 |
Toe link |
- |
- |
- |
| 5 |
W715127 |
Upper arm-to-wheel knuckle bolt |
- |
- |
- |
| 6 |
W520517 |
Upper arm-to-wheel knuckle nut |
- |
- |
200 Nm (148 lb-ft) |
| 7 |
W714033 |
Shock absorber lower bolt |
- |
- |
175 Nm (129 lb-ft) |
| 8 |
W710681 |
Brake caliper anchor plate bolts (2 required) |
- |
- |
103 Nm (76 lb-ft) |
| 9 |
- |
Brake caliper anchor plate and caliper assembly |
- |
- |
- |
| 10 |
2C190 |
Wheel speed sensor |
- |
- |
- |
| 11 |
W505255 |
Wheel speed sensor bolt |
- |
- |
15 Nm (133 lb-in) |
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |

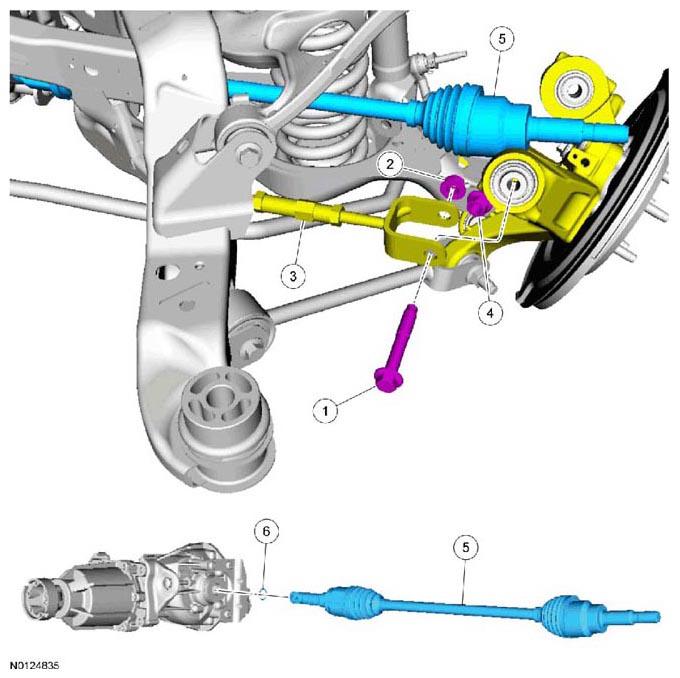

| 1 |
W715419 |
Toe link-to-wheel knuckle bolt |
- |
- |
150 Nm (111 lb-ft) |
| 2 |
W520516 |
Toe link-to-wheel knuckle nut |
- |
- |
- |
| 3 |
5A972 |
Toe link |
- |
- |
- |
| 4 |
W713940 |
Lower arm-to-wheel knuckle nut |
- |
- |
265 Nm (195 lb-ft) |
| 5 |
3b498b |
Circlip |
- |
- |
- |
| 6 |
4K138 |
Rear halfshaft assembly |
205-D072 D97L-4221-A, 205-816 |
- |
- |
