Solenoid Body Assembly: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan, gasket and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  2. Disconnect the transmission vehicle harness connector.
    Fig 1: Locating Transmission Vehicle Harness Connector
    G06140624Courtesy of FORD MOTOR CO.
  3. NOTE: While lowering the solenoid body, the manual valve may fall out of the solenoid body.

    Remove the solenoid body.

    1. Disconnect the Transmission Range (TR) sensor connector.
    2. Remove the solenoid body bolts.
    3. Remove the solenoid body.

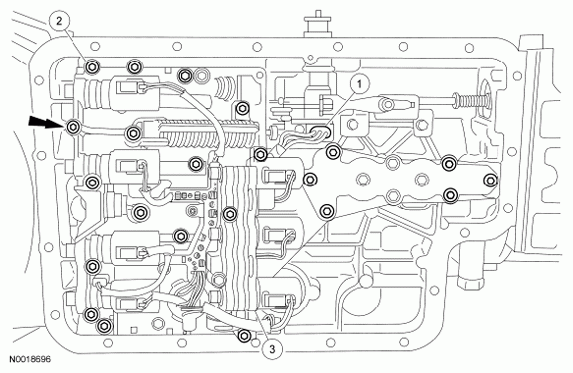

      Fig 2: Locating Solenoid Body Bolts
      G06140625Courtesy of FORD MOTOR CO.
  4. Remove the solenoid body gasket.
    Fig 3: Locating Solenoid Body Gasket
    G06140626Courtesy of FORD MOTOR CO.
