Instrument Panel: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.
  1. Rotate the steering wheel until the front wheels are in the straight-ahead position.
  2. Drain the coolant. COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
  3. Recover the refrigerant. If equipped with DATC  , refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING . If equipped with EMTC  , refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
  4. Remove the cowl panel grille. COWL PANEL GRILLE .
  5. Remove both front seats. SEAT SYSTEM - SEATS-SEATING - 1ST ROW .
  6. Remove the front floor console. Refer to CONSOLE - FRONT, FLOOR .
  7. Disconnect the battery. REFER to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
  8. NOTE: RH side shown in illustration, LH side similar.

    Police vehicles only. Remove the LH side and RH side center lower instrument panel finish panels.

    G08413050
  9. Police vehicles only. Remove the center lower instrument panel finish panel.
    G08413051
  10. Remove the steering wheel. REFER to STEERING WHEEL .
  11. Disconnect the 3 PCM electrical connectors and position the harness aside.
    1. Detach the PCM harness retainer.
      G07429274
  12. Remove the 2 PCM  nuts and remove the PCM  .
    1. To install, tighten to 8 Nm (71 lb-in).
      G07429312
  13. NOTE: LH side shown in illustration, RH side similar.

    Remove the strut tower cross brace.

    1. To install, tighten to 55 Nm (41 lb-ft).
      G07429276
  14. Remove the heater hoses from the heater core and position aside.
    G07429277
  15. Remove the TXV  manifold fastener and the manifold.
    1. Discard the O-ring seals.
    2. To install, tighten to 8 Nm (71 lb-in).
  16. Remove the LH and RH instrument panel-to-front of dash bolts.
    1. To install, tighten to 25 Nm (18 lb-ft).
      G07429278
  17. NOTE: LH side shown in illustration, RH side similar.

    Remove the LH and RH front door scuff plate trim panels.

    G07429279
  18. Position aside the LH and RH door weather strips.
  19. Remove the LH and RH A-pillar trim panels. REFER to A-PILLAR TRIM PANEL .
  20. NOTE: LH side shown in illustration, RH side similar.

    Remove the LH and RH instrument panel side trim panels.

    G07429280
  21. NOTE: LH side shown in illustration, RH side similar.

    Remove the LH and RH cowl side trim covers.

    G07429281

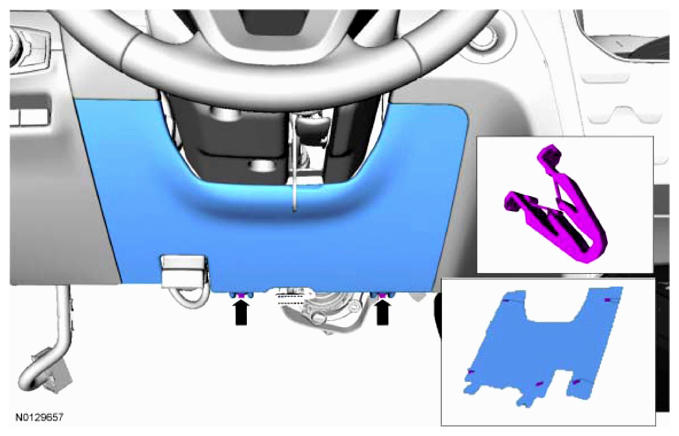

  22. Remove the 2 bolts and remove the steering column cover trim panel.
    1. To install, tighten to 1.9 Nm (17 lb-in).
    2. Pull outward to release the retainers.
      G09091298
  23. Remove the 4 bolts and remove steering column cover assembly.
    1. To install, tighten to 5 Nm (44 lb-in).
      G07430979
  24. Remove the hood release handle bolt and remove the hood release handle.
    1. To install, tighten to 5 Nm (44 lb-in).
      G07429284
  25. Remove the steering column pinch bolt and detach the steering column shaft from the steering column.
    1. To install, tighten to 26 Nm (19 lb-ft).
    2. Discard the steering column shaft-to-steering column bolt.
      G07429285
  26. Disconnect the LH instrument panel bulkhead electrical connector and the 2 lower SJB  electrical connectors.
    1. Detach the instrument panel bulkhead electrical connector push pin from the SJB  .
      G07429286
  27. Remove the drivers foot rest pad.
    G07429287
  28. Detach the retainers and remove the LH and RH front floor carpet sections.
    G07429288
  29. Disconnect the lower LH cowl bulkhead electrical connector.
    G07429289
  30. If equipped, detach the 2 retainers and remove the rear foot well duct.
    G07429290
  31. Disconnect the RH bulkhead electrical connector and the antenna cable connector.
    1. Release the antenna connector from the main harness.
      G07429291

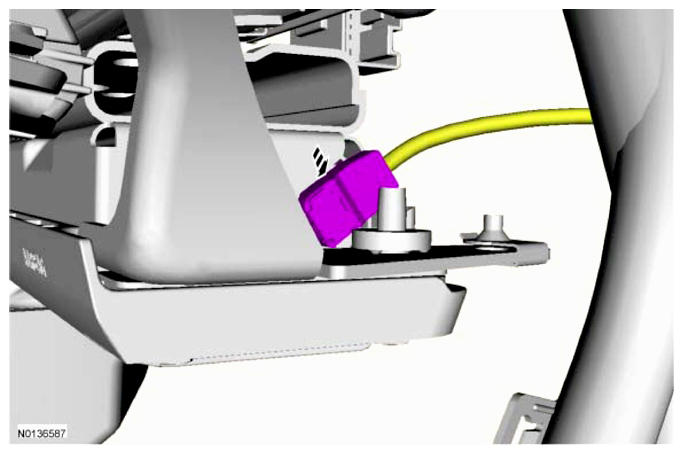

  32. If equipped, disconnect the knee bloster air bag connector.
    G09091308
  33. Remove the 2 bolts and the ground wires.
    1. To install, tighten to 10 Nm (89 lb-in).
      G07429292
  34. Disconnect the RCM  small electrical connector.
    1. Detach the 3 wiring harness retainers.
      G07429293
  35. NOTE: RH side shown in illustration, LH side similar.

    Remove the 4 instrument panel center support bracket bolts.

    1. To install, tighten to 25 Nm (18 lb-ft).
      G07429294
  36. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out the following steps.
    NOTE: RH side shown in illustration, LH side similar.
    NOTE: Remove the bolts from one side completely and support the instrument panel before removing the bolts from the opposite side.

    Remove the 3 LH and the 3 RH instrument panel side bolts.

    1. To install, tighten to 40 Nm (30 lb-ft).
      G07429295
  37. NOTE: Make sure not to damage the RH front door trim panel or the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Remove the instrument panel from the vehicle.

    1. Rotate the instrument panel face down and remove through the RH front door opening.
