Instrument Panel Upper Section: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.
  1. All vehicles except Police Interceptor. Remove the front floor console. Refer to CONSOLE - FRONT, FLOOR .
  2. NOTE: RH side shown in illustration, LH side similar.

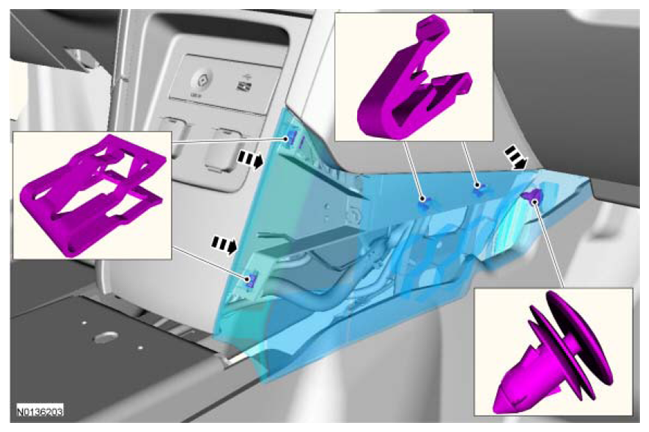

    Police Interceptor vehicles only. Remove the LH side and RH side center lower instrument panel finish panels.

    G08413050

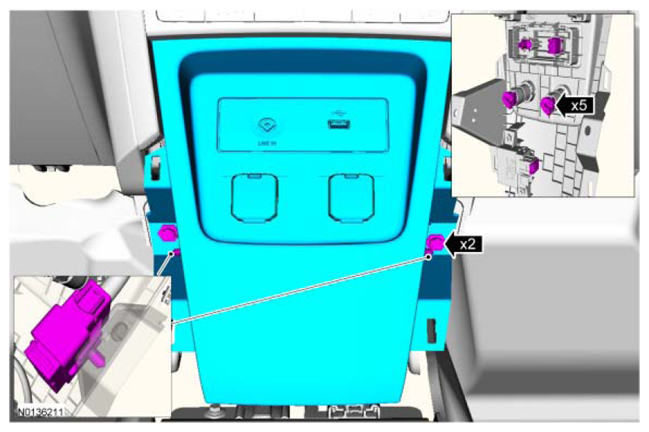

  3. Police Interceptor vehicles only. Remove the center lower instrument panel finish panel.
    G08413051
  4. Remove the LH and RH scuff plate trim panels. REFER to INTERIOR TRIM AND ORNAMENTATION .
  5. Position aside the LH and RH door weather strips.
  6. NOTE: LH side shown in illustration, RH side similar.

    Remove the LH and RH instrument panel side trim panels.

    G07429280
  7. NOTE: LH side shown in illustration, RH side similar.

    Remove the LH and RH cowl side trim covers.

    G07429281
  8. Remove the steering column. REFER to STEERING WHEEL .
  9. Remove the lower LH instrument panel trim panel.
    1. Disconnect the 2 electrical connectors.
      G07431062
  10. Remove the IPC  . REFER to INSTRUMENT PANEL CLUSTER (IPC) .
  11. Unclip the in-car tempreature sensor harness from the instrument panel upper section.
    G07429300
  12. Remove the GPSM  :

    For Premium audio system, refer to GLOBAL POSITIONING SYSTEM MODULE (GPSM) .

    For Premium Plus audio system, refer to GLOBAL POSITIONING SYSTEM MODULE (GPSM) .

    For Sony® Sound audio system, refer to GLOBAL POSITIONING SYSTEM MODULE (GPSM) .

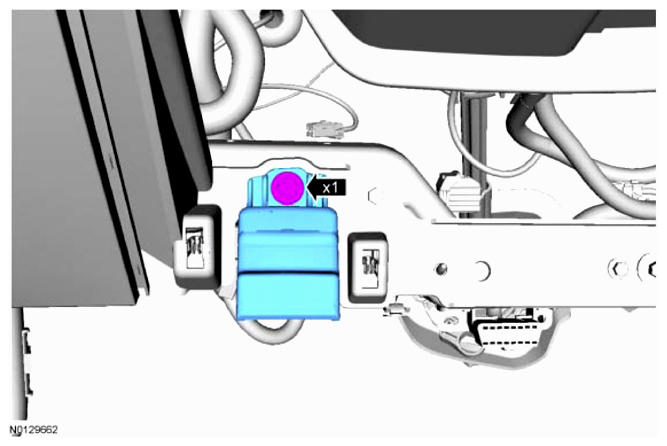

  13. Remove the hood release handle bolt and remove the hood release handle.
    1. To install, tighten to 5 Nm (44 lb-in).
      G09091322
  14. Remove the glove compartment door. Refer to GLOVE COMPARTMENT .
  15. Remove the glove compartment trim panel.
    G07427441
  16. Disconnect the glove compartment electrical connector.
    G07427442
  17. Remove the 8 screws and remove the glove compartment close out.
    1. To install, tighten to 2.5 Nm (22 lb-in).
      G07429304
  18. NOTE: Apply threadlock to the passenger side air bag to in-vehicle cross beam bolts prior to installation.

    Remove the 2 passenger side air bag to in-vehicle cross beam bolts.

    1. To install, tighten to 9 Nm (80 lb-in).
      G07429305
  19. NOTE: LH side shown in illustration RH similar.

    Disconnect the RH and LH passengers side air bag electrical connectors.

    G07429306
  20. Remove the ACM  , refer to AUDIO CONTROL MODULE (ACM) . Remove the FDIM  , refer to FRONT DISPLAY INTERFACE MODULE (FDIM) .
  21. Disconnect the ignition switch electrical connector or the push button start switch electrical connector.
    G07429307
  22. If equipped, remove the instrument panel speaker and grille as an assembly.
    1. Disconnect the electrical connector.
  23. Remove the defroster grille.
    1. Disconnect the electrical connector.
      G07429308
  24. Remove the 10 instrument panel upper section screws.
    1. To install, tighten to 2.5 Nm (22 lb-in).
      G07429309
  25. Gently pull the RH side of the instrument panel upper section rearward and detach the defroster grille electrical harness push pin from the HVAC  duct.
    G07429310
  26. NOTE: To avoid damaging the upper section, the aid of an assistant is required to carry out this step.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the upper section or damage to the components may occur.

    Remove the instrument panel upper section.
