Component Location

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

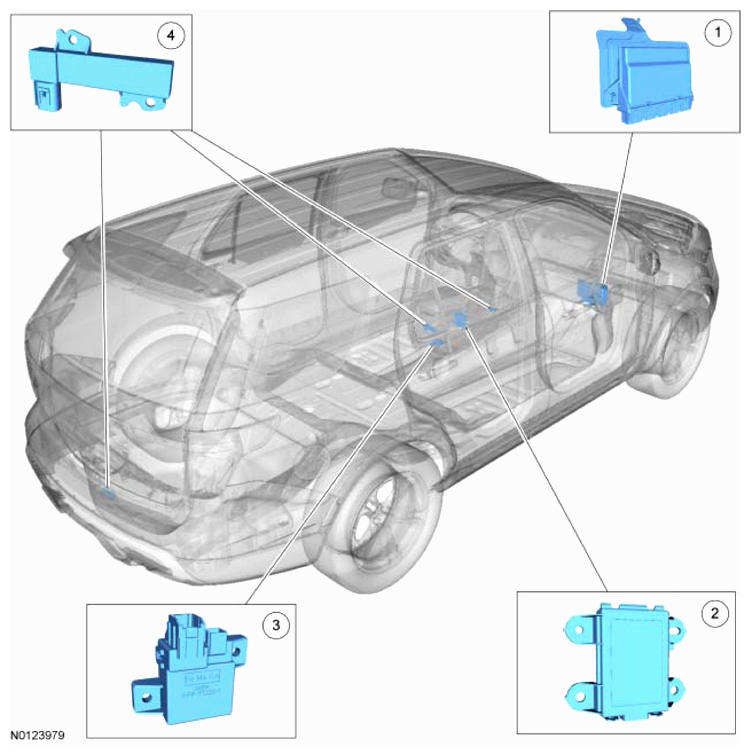

G09090637
Item Description
1 RFA  Module
2 Passive Start Backup Transceiver
3 TPM
4 Passive Start Antennas (3 required)
