Bumper Cover - Rear: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bumper cover to the vehicle.
  2. NOTE: LH  side shown in illustration, RH  side similar.

    Install the 2 bumper cover pin-type retainers along the top of the bumper cover.

    G09091548
  3. NOTE: LH  side shown in illustration, RH  side similar.

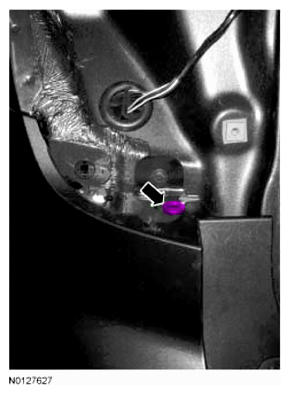

    Install the 2 bumper cover pin-type retainers located in the rear lamp openings.

    G09091549
  4. Install the 2 lower bumper cover screws.
    1. Tighten to 3 Nm (27 lb-in).
      G09091550
  5. Connect the backup sensor electrical connector and install the pin-type retainers.
    G09091551
  6. Install the rear lamp assemblies. Refer to REAR LAMP ASSEMBLY .
  7. NOTE: LH  side shown in illustration, RH  side similar.

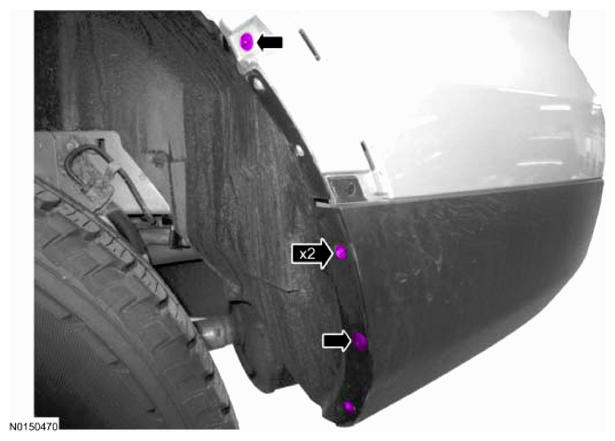

    Install the 3 screws and the pin-type retainer in the wheel opening.

    1. Tighten the 3 screws to 3 Nm (27 lb-in).
      G09091552
  8. Install the rear fender moldings. Refer to FENDER MOLDING -- REAR .
