Bumper Cover - Front: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fender moldings. REFER to FENDER MOLDING - FRONT .
  2. NOTE: LH side shown in illustration, RH side similar.

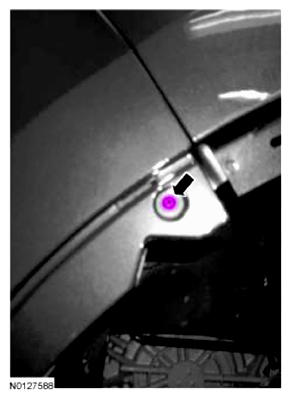

    Remove the fender-to-bumper cover screws.

    G09091533
  3. NOTE: LH side shown in illustration, RH side similar.

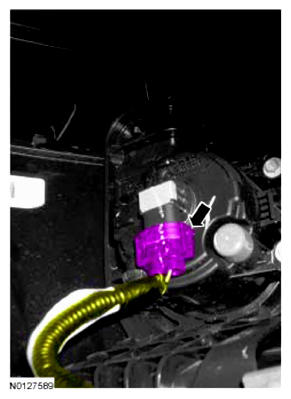

    Disconnect the fog lamp electrical connectors.

    G09091534
  4. If equipped, disconnect the 2 active park assist electrical connectors.
  5. If equipped, disconnect the grille flashing LED electrical connector.
  6. Remove the 3 lower bumper cover-to-radiator splash shield bolts.
    G09091535

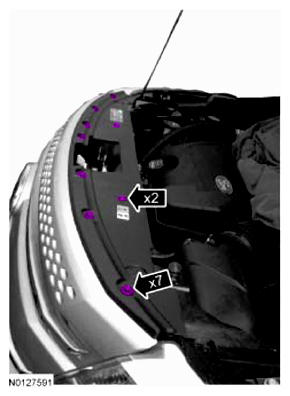

  7. Remove the 7 bolts and 2 pin-type retainers from the upper radiator sight shield.
    G09091536
  8. NOTE: LH side shown in illustration, RH side similar.

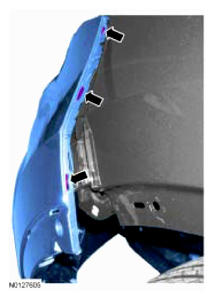

    Release the 4 locking tabs on each side of the bumper cover and remove the bumper cover and grille assembly.
