Bumper Cover - Front: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bumper cover and grille assembly to the vehicle.
  2. NOTE: LH side shown in illustration, RH side similar.

    Engage the 4 locking tabs on each side of the bumper cover.

    G09091538

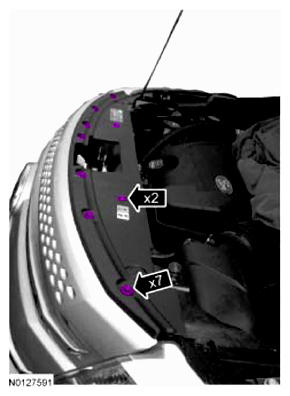

  3. Install the upper radiator sight shield.
    1. Install the 2 pin-type retainers.
    2. Install the 7 bolts.
      • Tighten to 3 Nm (27 lb-in).
        G09091539
  4. Install the 3 lower bumper cover-to-radiator splash shield bolts.
    1. Tighten to 3 Nm (27 lb-in).
      G09091540
  5. If equipped, connect the grille flashing LED electrical connector.
  6. If equipped, connect the 2 active park assist electrical connectors.

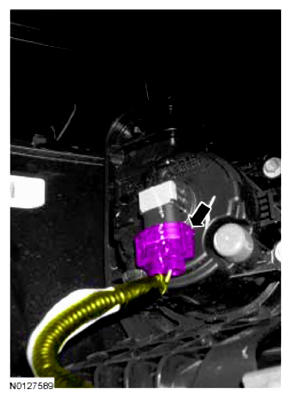

  7. NOTE: LH side shown in illustration, RH side similar.

    Connect the fog lamps electrical connectors.

    G09091541

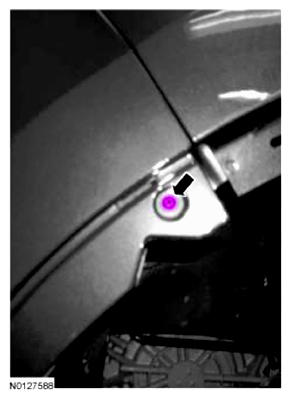

  8. NOTE: LH side shown in illustration, RH side similar.

    Install the fender-to-bumper cover screws.

    1. Tighten to 3 Nm (27 lb-in).
      G09091542
  9. Install the front fender moldings. REFER to FENDER MOLDING - FRONT .
