Bumper - Rear: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper cover. Refer to BUMPER COVER - REAR .

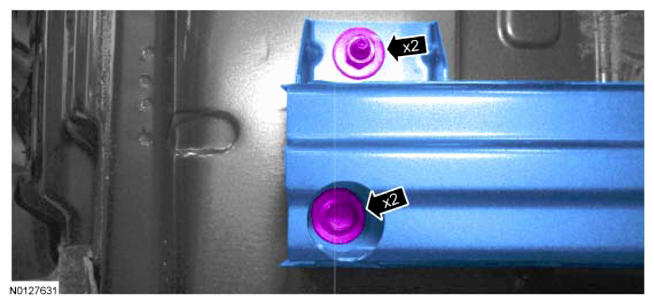

  2. NOTE: Left Hand (LH) side shown in illustration, RH  side similar.

    Remove the bumper.

    1. Remove the lower bumper bolts.
    2. Remove the upper bumper nuts.
    3. Remove the bumper.
      G09091531
