Bumper - Front: Installation
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If weld removal was necessary during removal, restore corrosion protection to all components before installation. REFER to RESTORING CORROSION PROTECTION FOLLOWING REPAIR.

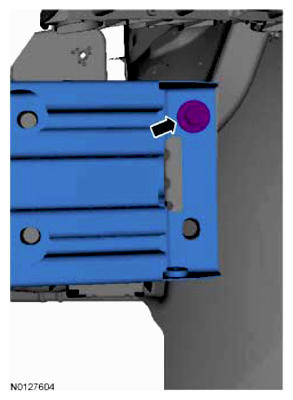

Position the front bumper beam to the vehicle and loosely install 1 bolt on each side.

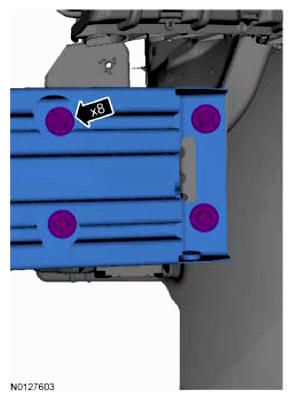

- Install the remaining bolts.
- Install the front bumper cover. Refer to BUMPER COVER - FRONT .
