Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

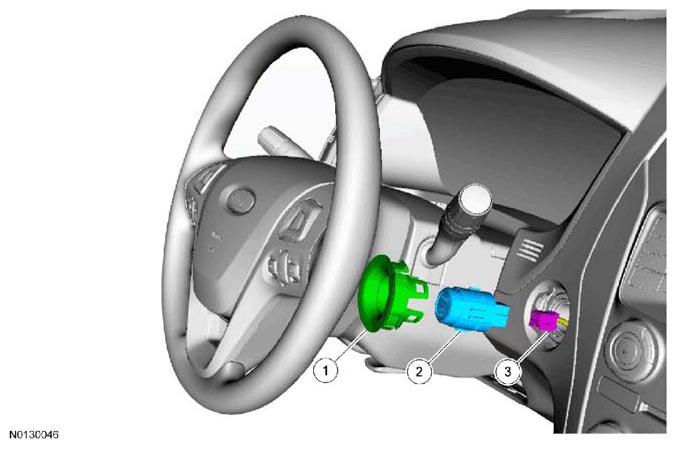

G07420830
Item Part Number Description
1 11584 Start/stop switch bezel
2 10B776 Start/stop switch
3 - Start/stop switch electrical connector (part of 14401)
