Tail Lamp Flashing LED: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.

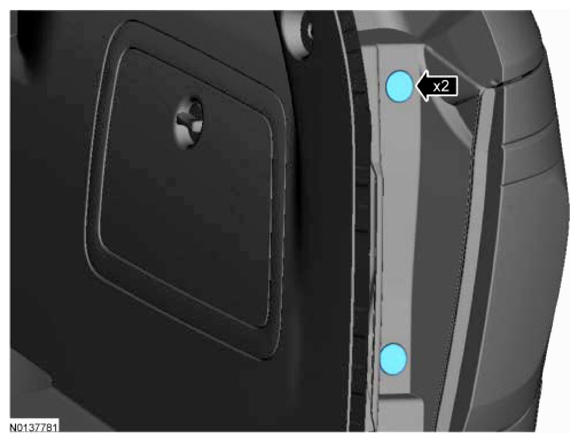

  1. G09084512
    • 3 Nm (27 lb-in)

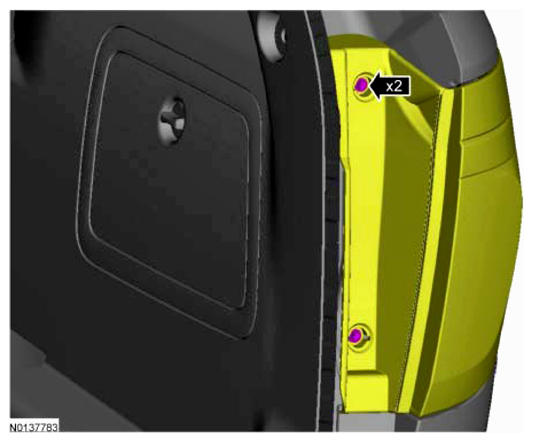

      G09084513
  3. Remove the quarter trim panel. REFER to QUARTER TRIM PANEL - WITH INFLATABLE SAFETY BELTS or REFER to QUARTER TRIM PANEL - WITHOUT INFLATABLE SAFETY BELTS .
  4. NOTE: Push the 2 wiring harness grommets through the rear body panel.

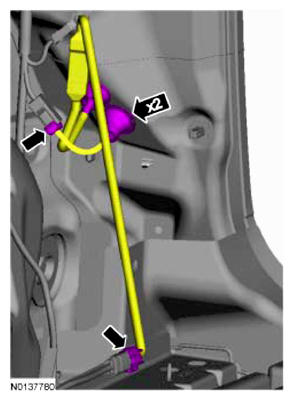

    G09084514

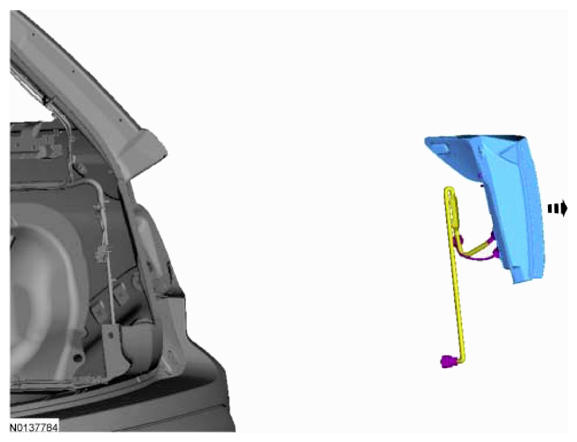

  5. G09084515

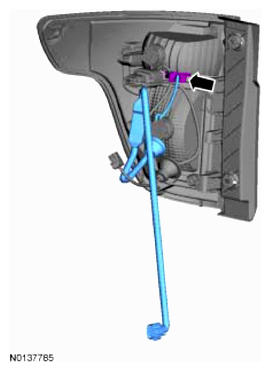

  6. G09084516
