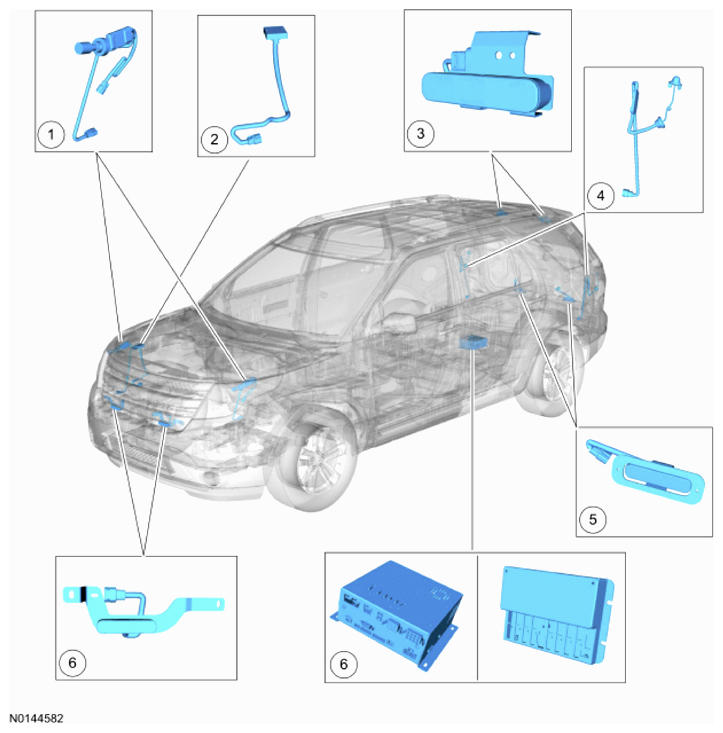

Component Location
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Description |
| 1 |
Front park or turn or warn LED assembly |
| 2 |
Warn module |
| 3 |
High mount flashing LEDs |
| 4 |
Tail lamp flashing LEDs |
| 5 |
Liftgate flashing LEDs |
| 6 |
Lighting relay center or lighting and siren control module |
| 7 |
Grille flashing LEDs |
