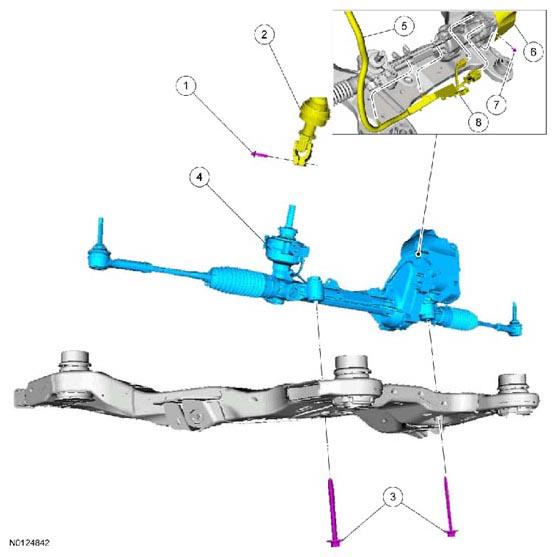

Exploded View - View 2 of 2
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W712961 | Steering column shaft-to steering gear bolt | - | - | 26 Nm (19 lb-ft) |
| 2 | 3B676 | Steering column shaft | - | - | - |
| 3 | W714710 | Steering gear bolts (2 required) | - | - | 165 Nm (122 lb-ft) |
| 4 | 3504 | Steering gear | - | - | - |
| 5 | 14B060 | Wiring harness | - | - | - |
| 6 | - | Flap heat shield (part of 7K721 kit) | - | - | - |
| 7 | W710616 | Flap heat shield bolt | - | - | 11 Nm (97 lb-in) |
| 8 | W705661 | Wiring harness-to-steering gear bolt | - | - | 11 Nm (97 lb-in) |
