Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |

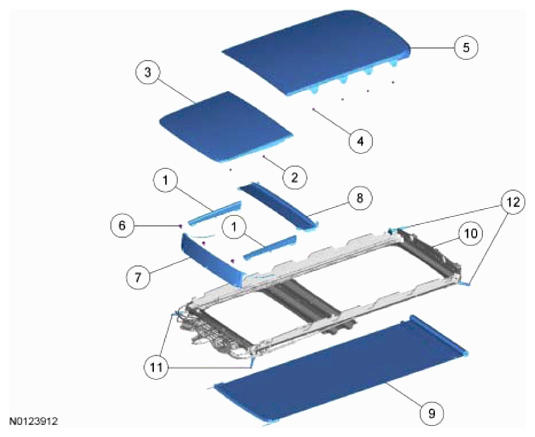

| 1 |
500A66 |
Concertina blinds (Right Hand (RH)/LH) |
- |
- |
- |
| 2 |
W790256 |
Front sliding glass panel screw (4 required) |
- |
- |
5 Nm (44 lb-in) |
| 3 |
500A18 |
Front sliding glass panel assembly |
- |
- |
- |
| 4 |
W790256 |
Rear fixed glass screw (8 required) |
- |
- |
5 Nm (44 lb-in) |
| 5 |
500A18 |
Rear fixed glass panel assembly |
- |
- |
- |
| 6 |
- |
Air deflector screw (3 required) |
- |
- |
- |
| 7 |
500A26 |
Air deflector assembly |
- |
- |
- |
| 8 |
54022 |
Roof opening panel drain trough assembly |
- |
- |
- |
| 9 |
519A02 |
Power shade assembly |
- |
- |
- |
| 10 |
502C22 |
Roof opening panel frame assembly |
- |
- |
- |
| 11 |
501A98/501A99 |
Roof opening panel front drain hoses (Right Hand (RH)/LH) |
- |
- |
- |
| 12 |
501A94/501A95 |
Roof opening panel rear drain hoses (Right Hand (RH)/LH) |
- |
- |
- |
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |

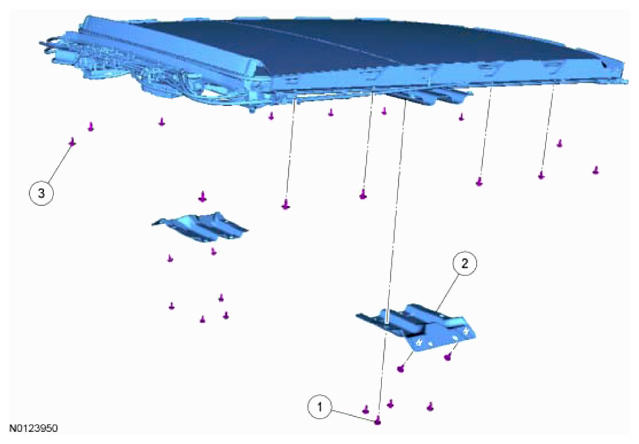

| 1 |
W710593 |
Roof opening panel frame bracket bolt (12 required) |
- |
- |
6 Nm (53 lb-in) |
| 2 |
51890/51891 |
Roof opening panel frame brackets (Right Hand (RH)/LH) |
- |
- |
- |
| 3 |
W710593 |
Roof opening panel frame bolt (14 required) |
- |
- |
6 Nm (53 lb-in) |
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |

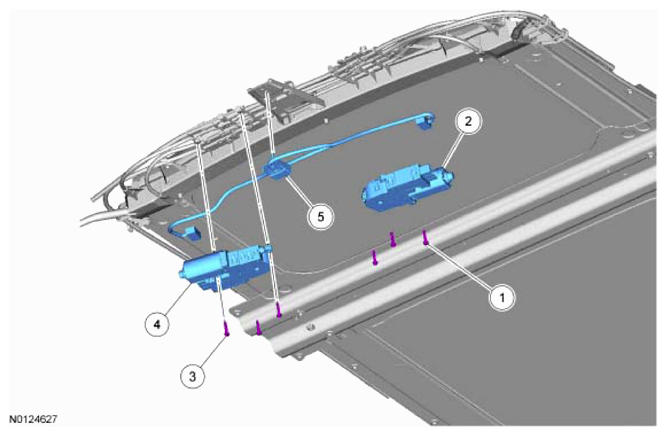

| 1 |
- |
Front sliding glass panel motor screw (3 required) |
- |
- |
- |
| 2 |
15790 |
Front sliding glass panel motor assembly |
- |
- |
- |
| 3 |
- |
Power shade motor screw (3 required) |
- |
- |
- |
| 4 |
15790 |
Power shade motor assembly |
- |
- |
- |
| 5 |
15A657 |
Roof opening panel wiring jumper harness |
- |
- |
- |
- For additional information, refer to the appropriate procedures in this information.
