Lower Oil Pan

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

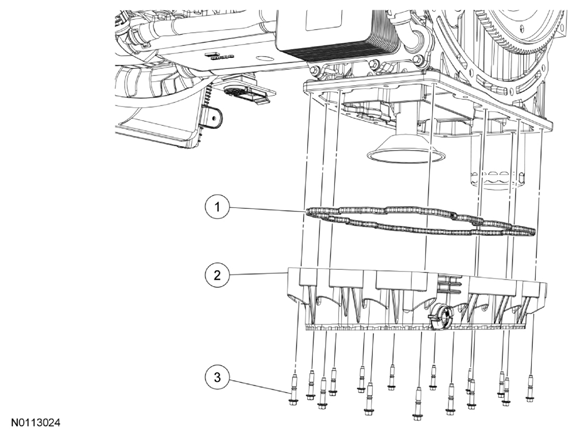

Fig 1: Exploded View Of Lower Oil Pan
G08593238Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6710 Oil pan gasket
2 6675 Lower oil pan
3 6H092 Lower oil pan bolt (15 required)
