Oil Pan - Lower: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a new gasket, install the lower oil pan and the 15 bolts. Tighten in the sequence shown in the illustration.
    • Tighten to 10 Nm (89 lb-in).

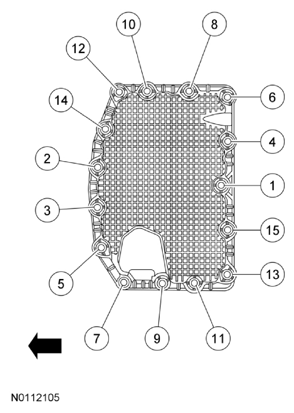

      Fig 1: Identifying Tightening Sequence Of Lower Oil Pan Mounting Bolts
      G08593239Courtesy of FORD MOTOR CO.
  2. Fill the engine with the correct engine oil for the climate. Refer to the Engine .
