Lower Oil Level Indicator Tube

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

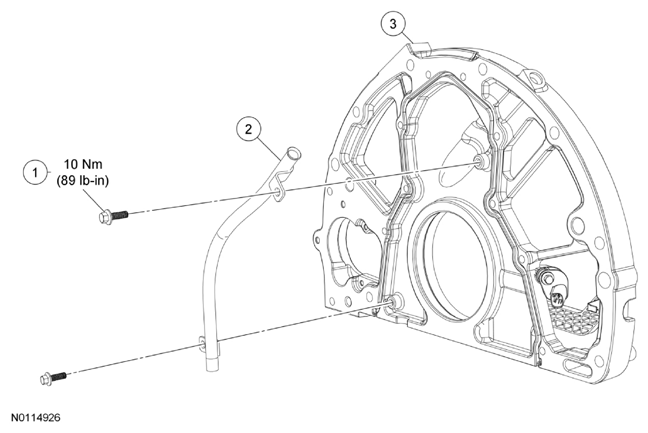

Fig 1: Engine Rear Cover, Lower Oil Level Indicator Tube And Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500813	Lower oil level indicator tube bolt (2 required)
2	6754	Lower oil level indicator tube
3	6D083	Engine rear cover
