Exhaust Manifold - RH: Installation
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

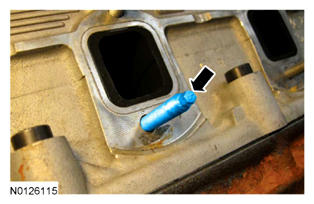

- Install the new exhaust manifold stud(s) as needed.
- Using a new gasket, install the RH exhaust manifold, 8 spacers and 8 new nuts. Tighten the nuts in 3 stages, in the sequence shown in the illustration.
- Stage 1: Tighten to 20 Nm (177 lb-in).
- Stage 2: Tighten to 30 Nm (22 lb-ft).
- Stage 3: Tighten a second time, to 30 Nm (22 lb-ft).
- Install the RH exhaust manifold heat shield and 5 bolts.
- Tighten to 10 Nm (89 lb-in).

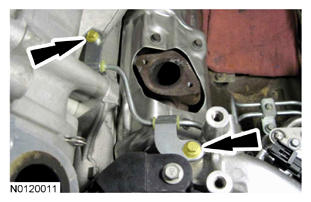

- Install the 2 fuel rail supply tube bracket bolts.
-
NOTE: EGR cooler side shown, exhaust manifold side similar.

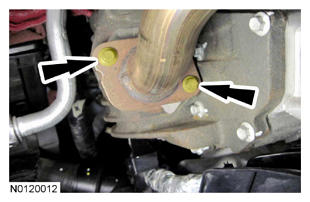

Using new gaskets, install the EGR valve inlet tube and the 4 bolts. Tighten the bolts in the following sequence.
-
NOTE: Apply threadlock to the EGR cooler side bolt threads prior to installation.

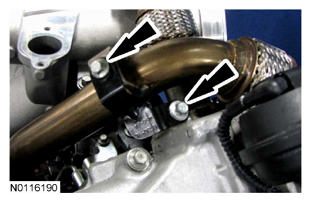

Install the EGR valve inlet tube bracket and the 2 new bolts. Tighten in 4 stages:
- Stage 1: Tighten the EGR valve inlet tube bracket bolt at the EGR cooler to 10 Nm (89 lb-in).
- Stage 2: Tighten the EGR valve inlet tube bracket bolt at the EGR cooler an additional 45 degrees.
- Stage 3: Tighten the EGR valve inlet tube bracket bolt to 10 Nm (89 lb-in).
- Stage 4: Tighten the EGR valve inlet tube bracket bolt an additional 45 degrees.
-
NOTE: Do not install the upper intake manifold at this time.
Install the turbocharger. For additional information, refer to FUEL CHARGING AND CONTROLS - TURBOCHARGER .
- Install the RH turbocharger inlet pipe. For additional information, refer to EXHAUST SYSTEM .
- Install the upper intake manifold. For additional information, refer to INTAKE MANIFOLD - UPPER .
