Engine Front Cover: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper oil pan. For additional information, refer to OIL PAN - UPPER .
  2. Remove the cooling module, cooling fan stator and cooling fan. For additional information, refer to ENGINE COOLING - DIESEL ENGINES .
  3. Remove the accessory drive belt, accessory drive belt tensioner and cooling fan drive assembly. For additional information, refer to ACCESSORY DRIVE .
  4. Remove the A/C compressor. For additional information, refer to CLIMATE CONTROL .
  5. Remove the vacuum pump. For additional information, refer to POWER BRAKE ACTUATION .
  6. Disconnect the Camshaft Position (CMP) sensor electrical connector and the 3 wire retainers.

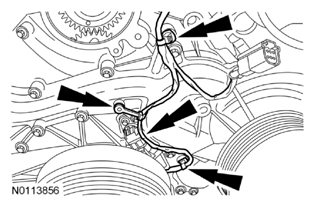

    Fig 1: Locating Camshaft Position Sensor Electrical Connector And Wire Retainers
    G08593163Courtesy of FORD MOTOR CO.
  7. Disconnect the power steering tube from the retainer. Remove the 2 bolts for the engine wire harness.

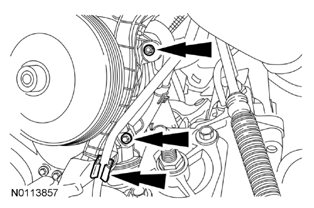

    Fig 2: Locating Engine Wire Harness Mounting Bolts
    G08593164Courtesy of FORD MOTOR CO.
  8. Remove the clip and disconnect the lower radiator hose.

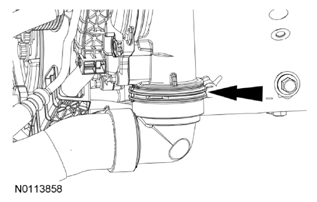

    Fig 3: Locating Lower Radiator Hose Clip
    G08593165Courtesy of FORD MOTOR CO.
  9. Disconnect the engine wire harness retainer from the power steering pump bracket and position engine wire harness aside.
    Fig 4: Locating Engine Wire Harness Retainer
    G08593166Courtesy of FORD MOTOR CO.
  10. Remove the clip and disconnect the engine fill hose from the degas bottle.

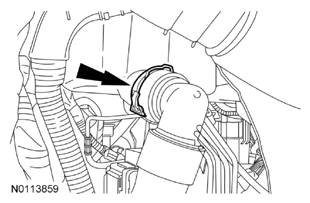

    Fig 5: Locating Engine Fill Hose Clip
    G08593167Courtesy of FORD MOTOR CO.
  11. Remove the crankshaft front seal. For additional information, refer to CRANKSHAFT FRONT SEAL .
  12. NOTE: Use care when removing the engine front cover not to scratch the crankshaft sealing surface.
    NOTE: Make the location of the front cover bolts prior to removing them.

    Remove the 14 bolts and the engine front cover.

    • Discard the engine front cover.
    • Clean and inspect the sealing surfaces.
