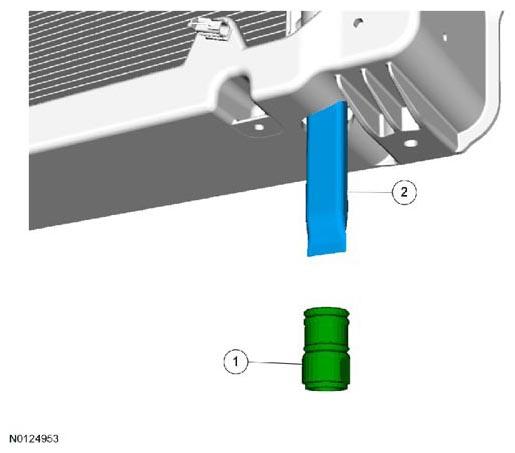

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |
| 1 |
- |
Receiver/drier plug (part of 19C836 kit) |
- |
- |
22 Nm (16 lb-ft) |
| 2 |
19C836 |
Receiver/drier desiccant bag |
- |
- |
- |
