Exhaust Manifold - RH: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty and 2013 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |

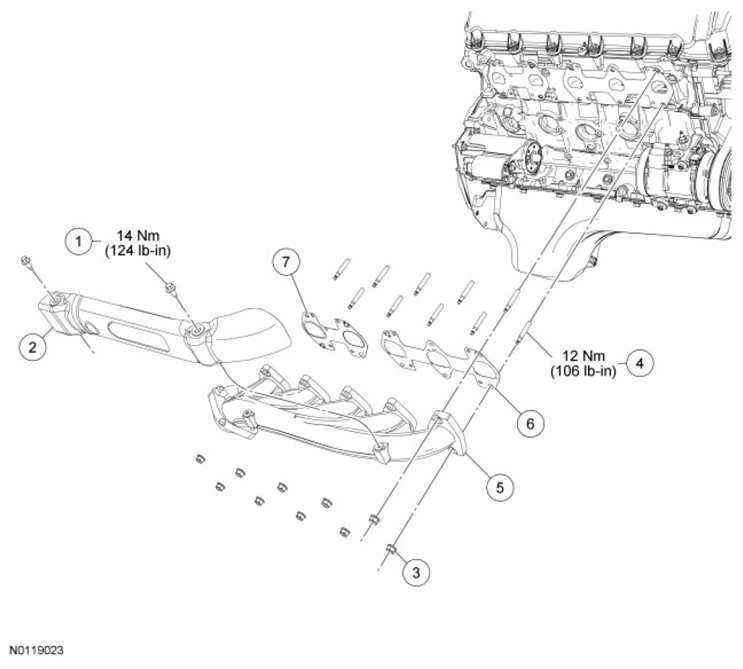

| Item | Part Number | Description |
|---|---|---|
| 1 | W714133 | Exhaust manifold heat shield bolt (2 required) |
| 2 | 9A462 | Exhaust manifold heat shield |
| 3 | W701706 | Exhaust manifold nut (10 required) |
| 4 | W703902 | Exhaust manifold-to-cylinder head stud (10 required) |
| 5 | 9431 | Exhaust manifold |
| 6 | 9448 | Front exhaust manifold gasket |
| 7 | 9448 | Rear exhaust manifold gasket |
