Fuel Rail and Fuel Injector: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty and 2013 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

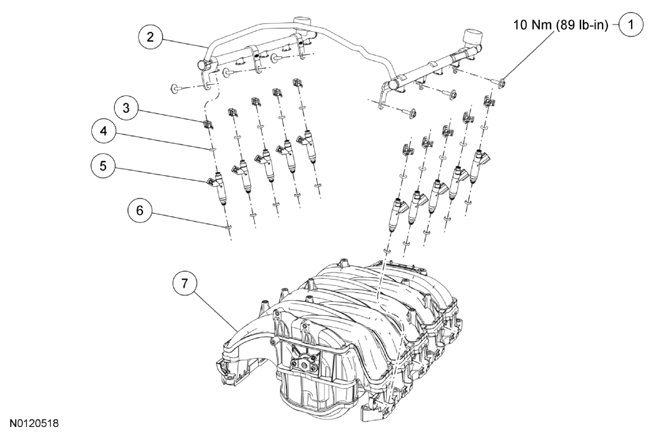

| Item | Part Number | Description |
|---|---|---|
| 1 | W710700 | Fuel rail bolt (6 required) |
| 2 | 9F792 | Fuel rail |
| 3 | 9C995 | Fuel injector-to-fuel rail locking clip (10 required) |
| 4 | - | Fuel injector-to-fuel rail O-ring seal (10 required) (part of 9F593) |
| 5 | 9F593 | Fuel injector (10 required) |
| 6 | - | Fuel injector-to-intake manifold O-ring seal (10 required) (part of 9F593) |
| 7 | 9424 | Intake manifold |
