Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

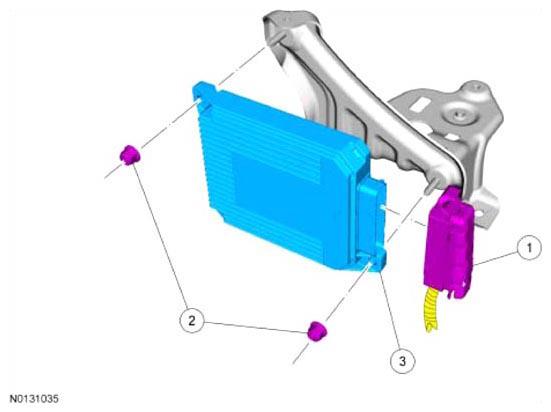

G08031095Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 TCM  electrical connector
2 W202212 TCM  nuts
2 12B565 TCM
