Component Location
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

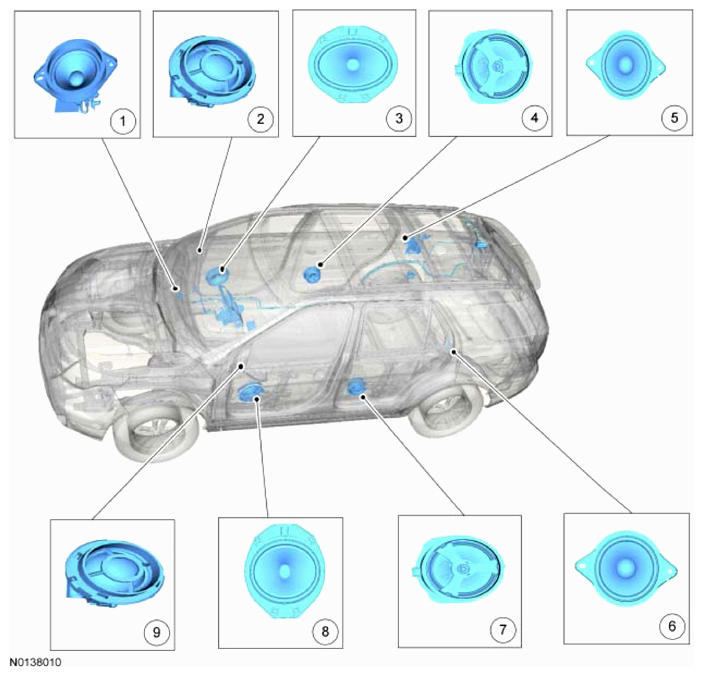

| Item |
Description |
Comments |
| 1 |
Instrument panel speaker |
- |
| 2 |
RH
tweeter speaker |
- |
| 3 |
RF
door speaker |
- |
| 4 |
RH
rear door speaker |
- |
| 5 |
RH
quarter trim panel speaker |
- |
| 6 |
LH
quarter trim panel speaker |
- |
| 7 |
LH
rear door speaker |
- |
| 8 |
LF
door speaker |
- |
| 9 |
LH
tweeter speaker |
- |

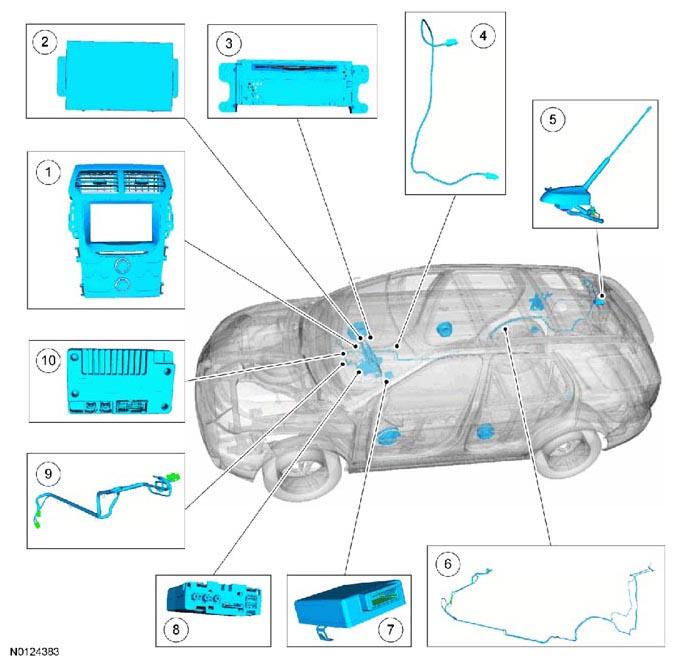

| Item |
Description |
Comments |
| 1 |
FCIM |
- |
| 2 |
FDIM |
- |
| 3 |
ACM |
- |
| 4 |
USB
cable |
- |
| 5 |
Antenna |
- |
| 6 |
Antenna cable |
- |
| 7 |
GPSM |
- |
| 8 |
Media hub |
- |
| 9 |
Antenna cable |
- |
| 10 |
APIM |
- |
