Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Special bolts are used for installation. Do not use standard bolts.

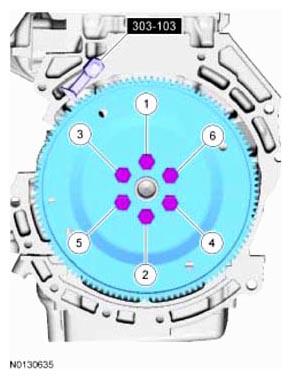

Install the flexplate, the 6 new bolts and the Flywheel Holding Tool.

Tighten in the sequence shown in illustration in 3 stages:

Stage 1: Tighten to 50 Nm (37 lb-ft).
Stage 2: Tighten to 80 Nm (59 lb-ft).

Stage 3: Tighten to 120 Nm (89 lb-ft).

Install the transaxle. REFER to AUTOMATIC TRANSMISSION .
After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
