Engine Mount: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING
Loosen the 4 retainers and remove the underbody shield.

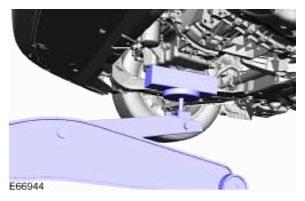

Using a floor jack and a wooden block, support the engine.

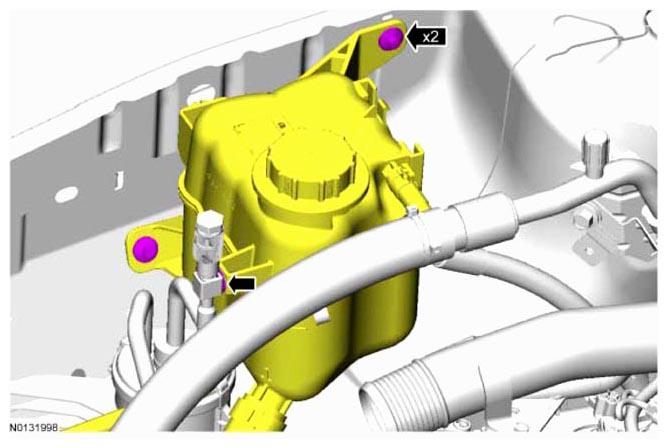

Remove the 2 bolts, the A/C tube retaining clip and position the degas bottle aside.
- To install, tighten to 9 Nm (80 lb-in).

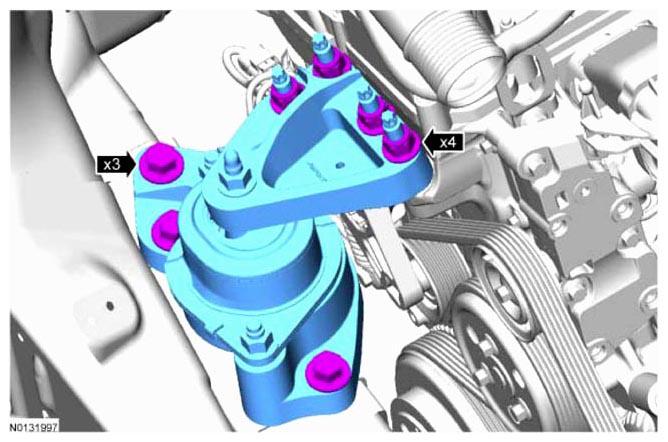

Remove the 4 nuts, the 3 bolts and the engine support insulator.
- To install, tighten bolts to 90 Nm (66 lb-ft).
- To install, tighten nuts to 125 Nm (92 lb-ft).
