Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

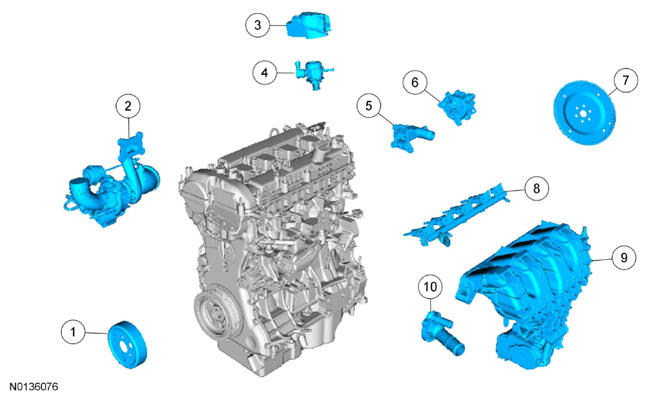

| Item |
Part Number |
Description |
| 1 |
8509 |
Coolant pump pulley |
| 2 |
6K682 |
Turbocharger |
| 3 |
9C374 |
Fuel injection pump cover |
| 4 |
9D376 |
Fuel injection pump |
| 5 |
8K556 |
Coolant outlet |
| 6 |
2A451 |
Brake vacuum pump |
| 7 |
6375 |
Flexplate |
| 8 |
9F797 |
Fuel rail |
| 9 |
9424 |
Intake manifold |
| 10 |
8575 |
Thermostat assembly |

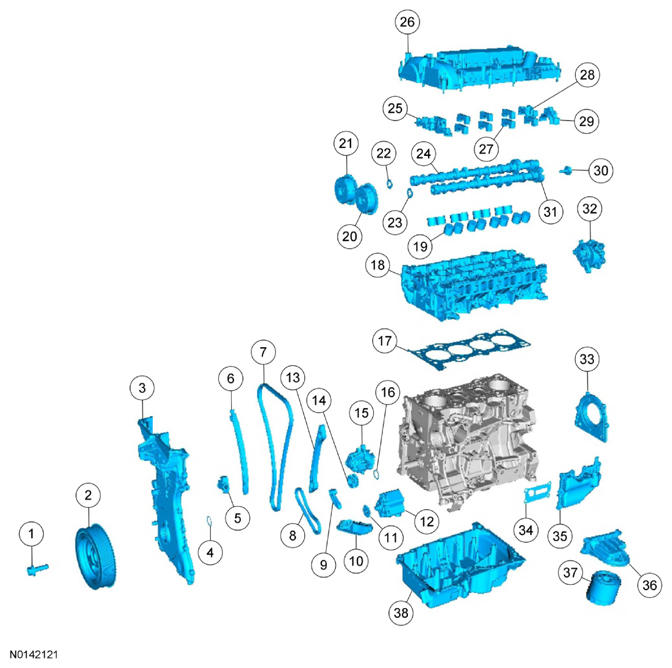

| Item |
Part Number |
Description |
| 1 |
6K340 |
Crankshaft pulley bolt |
| 2 |
6B319 |
Crankshaft damper |
| 3 |
6019 |
Engine front cover |
| 4 |
6378 |
Diamond washer |
| 5 |
6K254 |
Timing chain tensioner |
| 6 |
6K255 |
Timing chain tensioner arm |
| 7 |
6268 |
Timing chain |
| 8 |
6A895 |
Oil pump chain |
| 9 |
6C271 |
Oil pump chain tensioner |
| 10 |
6622 |
Oil pump screen and pickup tube |
| 11 |
6652 |
Oil pump drive gear |
| 12 |
6600 |
Oil pump |
| 13 |
6K297 |
Timing chain guide |
| 14 |
6306 |
Crankshaft sprocket |
| 15 |
8501 |
Coolant pump |
| 16 |
6378 |
Diamond washer |
| 17 |
6051 |
Head gasket |
| 18 |
6049 |
Cylinder head |
| 19 |
6500 |
Valve tappet (16 required) |
| 20 |
6C524 |
Intake VCT
phaser and sprocket |
| 21 |
6C525 |
Exhaust VCT
phaser and sprocket |
| 22 |
6278 |
Washer (if equipped) |
| 23 |
6278 |
Washer (if equipped) |
| 24 |
6051 |
Camshaft (exhaust) |
| 25 |
- |
Camshaft front bearing cap (part of 6049) |
| 26 |
6K271 |
Valve cover |
| 27 |
- |
Camshaft bearing cap (part of 6049) (8 required) |
| 28 |
- |
Exhaust camshaft rear bearing cap (part of 6049) |
| 29 |
- |
Intake camshaft rear bearing cap (part of 6049) |
| 30 |
6K269 |
Brake vacuum pump adapter |
| 31 |
6A271 |
Camshaft (intake) |
| 32 |
2A451 |
Brake vacuum pump |
| 33 |
6K318 |
Crankshaft rear oil seal and retainer |
| 34 |
6A636 |
Oil filter adapter gasket |
| 35 |
6A785 |
Crankcase vent oil separator |
| 36 |
6881 |
Oil filter adapter |
| 37 |
6714 |
Oil filter |
| 38 |
6675 |
Oil pan |

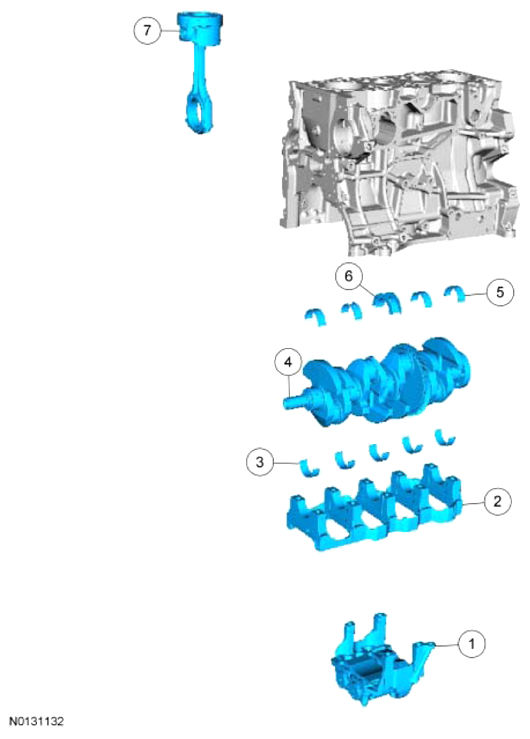

| Item |
Part Number |
Description |
| 1 |
6K360 |
Balance shaft assembly |
| 2 |
- |
Main bearing beam (part of 6010) |
| 3 |
6A338 |
Crankshaft main bearing beam bearing (5 required) |
| 4 |
6300 |
Crankshaft assembly |
| 5 |
6333 |
Cylinder block crankshaft main bearing (4 required) |
| 6 |
6337 |
Cylinder block crankshaft main thrust bearing |
| 7 |
6110 |
Piston (4 required) |
