Timing Drive Components: Notes
WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |

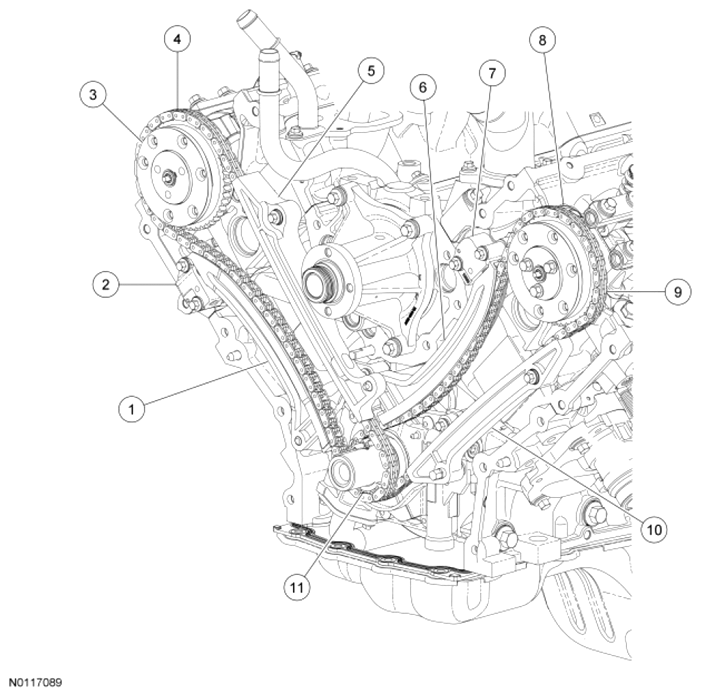

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K255 | RH timing chain tensioner arm |
| 2 | 6L266 | RH timing chain tensioner |
| 3 | 6256 | RH camshaft phaser and sprocket |
| 4 | 6268 | RH timing chain |
| 5 | 6M256 | RH timing chain guide |
| 6 | 6K255 | LH timing chain tensioner arm |
| 7 | 6L266 | LH timing chain tensioner |
| 8 | 6268 | LH timing chain |
| 9 | 6256 | LH camshaft phaser and sprocket |
| 10 | 6B274 | LH timing chain guide |
| 11 | 6306 | Crankshaft sprocket |
