Wiring Harness Retainers, Intake Manifold and Gaskets: Notes

WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

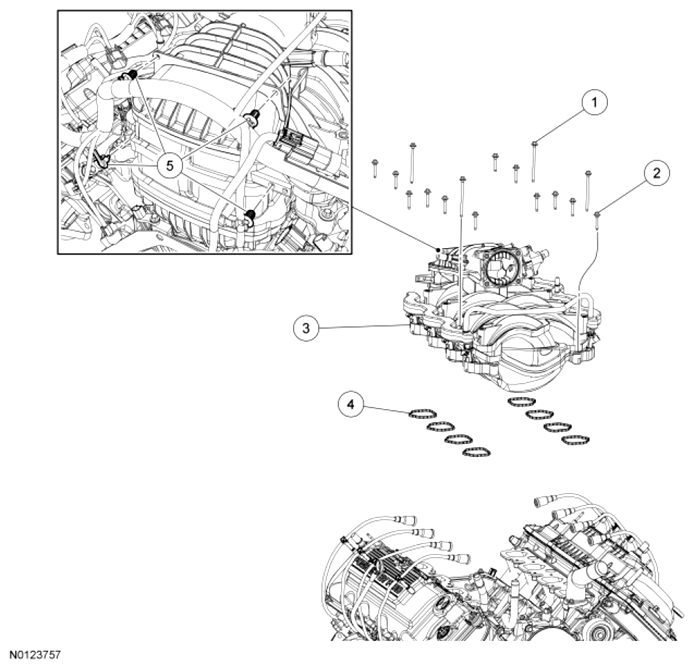

Fig 1: Identifying Wiring Harness Retainers, Intake Manifold And Gaskets
G07404414Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W714633 Fuel rail bolt (4 required)
2 9Y450 Intake manifold bolt (12 required)
3 9424 Intake manifold
4 9439 Intake manifold gasket (8 required)
5 - Engine wiring harness retainers (part of 12C508) (4 required)
