Exhaust Manifold - LH: Notes
WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

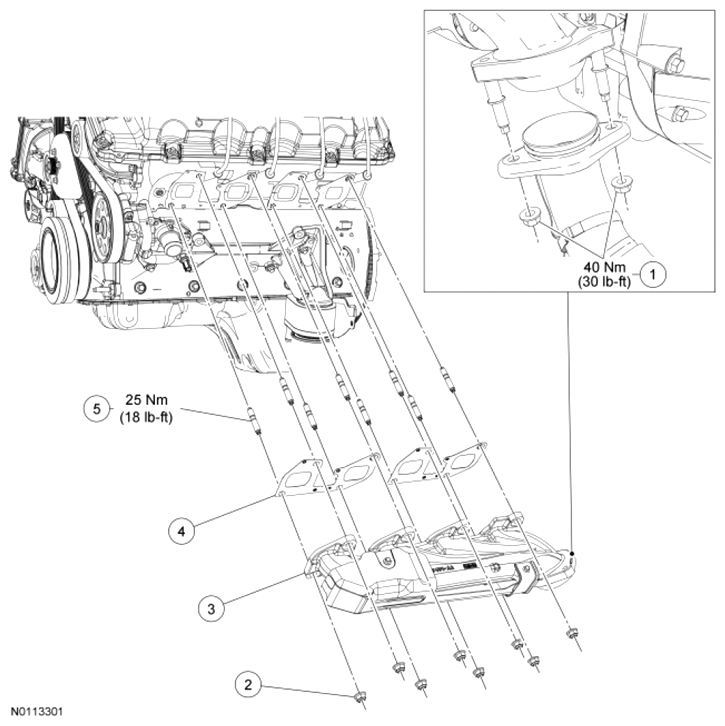

| Item | Part Number | Description |
|---|---|---|
| 1 | W705443 | Exhaust Y-pipe flange nuts (2 required) |
| 2 | W714870 | LH exhaust manifold nut (8 required) |
| 3 | 9431 | LH exhaust manifold |
| 4 | 9448 | LH exhaust manifold gasket (2 required) |
| 5 | W714869 | Exhaust manifold-to-cylinder head stud (8 required) |
