Engine Oil Pressure (EOP) Switch: Notes

WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

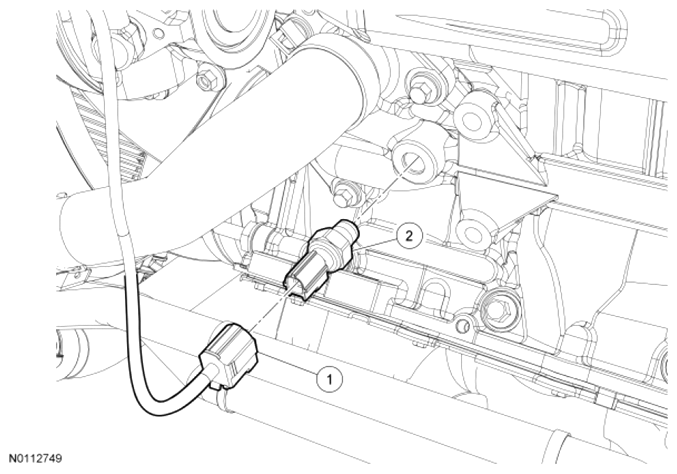

Fig 1: Identifying Engine Oil Pressure Switch
G07479584Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Engine Oil Pressure (EOP) switch electrical connector (part 12C508)
2 9278 EOP switch
