Engine Front Cover and Gaskets: Removal

WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the cooling fan and shroud. For additional information, refer to ENGINE COOLING - GASOLINE ENGINES .
  3. Remove the RH and LH variable force solenoids. For additional information, refer to ELECTRONIC ENGINE CONTROLS - GASOLINE ENGINES .
  4. Remove the nut and the position the radio ignition interference capacitor aside.
    Fig 1: Locating Radio Ignition Interference Capacitor And Nut
    G06518134Courtesy of FORD MOTOR CO.
  5. Loosen the 4 coolant pump pulley bolts.
  6. Rotate the tensioner clockwise and remove the accessory drive belt.
    Fig 2: Rotating Tensioner Clockwise
    G06126189Courtesy of FORD MOTOR CO.
  7. Remove the 4 bolts and the coolant pump pulley.
  8. Drain the engine oil.
  9. Remove the nut and position aside the transmission cooler tube support bracket and the starter wiring harness support bracket.
  10. Remove and discard the crankshaft pulley bolt.
  11. Using the 3 Jaw Puller and Step Plate, remove the crankshaft pulley.
    Fig 3: Removing Crankshaft Pulley Using Jaw Puller And Step Plate
    G07404433Courtesy of FORD MOTOR CO.
  12. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    Using the Oil Seal Remover, remove the crankshaft front oil seal.

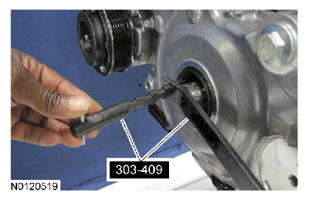

    Fig 4: Removing Crankshaft Front Oil Seal Using Oil Seal Remover
    G08339345Courtesy of FORD MOTOR CO.
  13. Remove the 2 bolts and the 2 accessory drive idler pulleys.
  14. Remove the 3 bolts and the accessory drive belt tensioner.
  15. Remove the 4 front oil pan bolts.
  16. Remove bolt and disconnect the power steering pressure Power Steering Pressure (PSP) tube.
  17. Remove the 3 bolts and position aside the power steering pump.
  18. Remove the 17 bolts and the 3 studs.
  19. Remove the engine front cover from the front cover-to-cylinder block dowel.
    • Remove and discard the engine front cover gaskets.
      Fig 5: Removing Engine Front Cover From Front Cover-To-Cylinder Block Dowel
      G06518141Courtesy of FORD MOTOR CO.
  20. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.

    • Inspect the mating surfaces.
