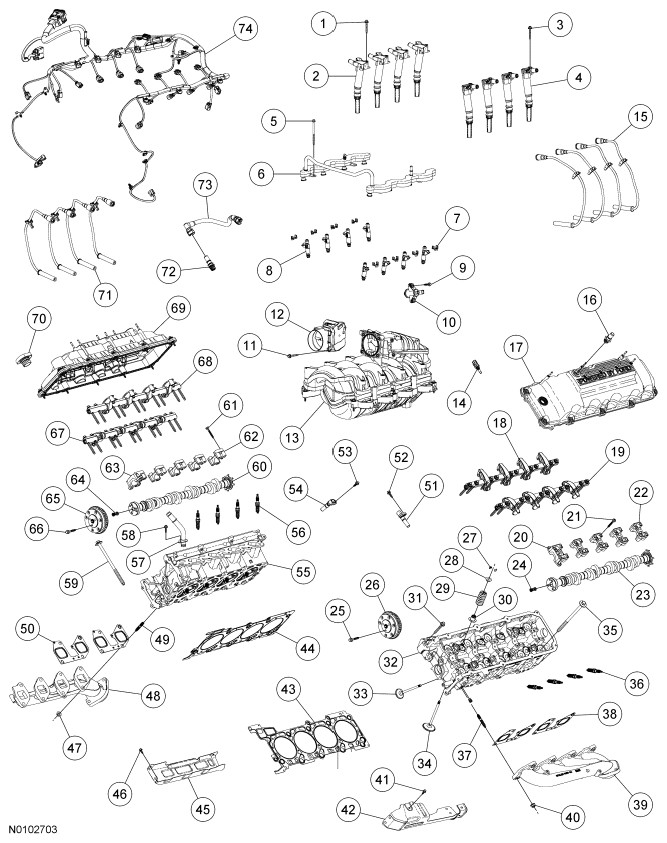

Engine - Upper End
WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W503282 | Ignition coil bolt - RH (4 required) |
| 2 | 12029 | Ignition coil - RH (4 required) |
| 3 | W503282 | Ignition coil bolt - LH (4 required) |
| 4 | 12029 | Ignition coil - LH (4 required) |
| 5 | W714633 | Fuel rail bolt (4 required) |
| 6 | 9F792 | Fuel rail |
| 7 | 9C995 | Fuel injector clip (8 required) |
| 8 | 9F593 | Fuel injector (8 required) |
| 9 | W503278 | EVAP purge valve bolt (2 required) |
| 10 | 9C915 | EVAP purge valve |
| 11 | W709168 | Throttle Body (TB) bolt (4 required) |
| 12 | 9E926 | TB |
| 13 | 9424 | Intake manifold assembly |
| 14 | 6G004 | Cylinder Head Temperature (CHT) sensor |
| 15 | 12286 | Ignition wire - LH (4 required) |
| 16 | 6762 | Crankcase ventilation tube fitting |
| 17 | 6582 | Valve cover - LH |
| 18 | 6564C | Intake rocker arm and shaft assembly - LH |
| 19 | 6564D | Exhaust rocker arm and shaft assembly - LH |
| 20 | 6B280 | Front camshaft bearing cap - LH |
| 21 | W714203 | Camshaft bearing cap bolt - (10 required) |
| 22 | 6B284 | Camshaft bearing cap - LH (4 required) |
| 23 | 6C255 | Camshaft - LH |
| 24 | 6C683 | Variable Camshaft Timing (VCT) system oil filter |
| 25 | W712998 | Camshaft phaser and sprocket bolt - LH |
| 26 | 6C524 | Camshaft phaser and sprocket - LH |
| 27 | 6518 | Valve spring retainer key (32 required) |
| 28 | 6514 | Valve spring retainer (16 required) |
| 29 | 6513 | Valve spring (16 required) |
| 30 | 6571 | Valve stem seal (16 required) |
| 31 | W705738 | Cylinder head bolt - LH |
| 32 | 6049 | Cylinder head - LH |
| 33 | 6507 | Exhaust valve (8 required) |
| 34 | 6505 | Intake valve (8 required) |
| 35 | 6065 | Cylinder head bolt - LH (10 required) |
| 36 | 12405 | Lower spark plug (8 required) |
| 37 | W714869 | Exhaust manifold stud - LH (8 required) |
| 38 | 9448 | Exhaust manifold gasket - LH (2 required) |
| 39 | 9431 | Exhaust manifold - LH |
| 40 | W714870 | Exhaust manifold nut - LH (8 required) |
| 41 | W714133 | Exhaust manifold heat shield bolt (2 required) |
| 42 | 9A462 | Exhaust manifold heat shield |
| 43 | 6051 | Cylinder head gasket - LH |
| 44 | 6051 | Cylinder head gasket - RH |
| 45 | 9A462 | Exhaust manifold heat shield |
| 46 | W714133 | Exhaust manifold heat shield bolt (2 required) |
| 47 | W714870 | Exhaust manifold nut - RH (8 required) |
| 48 | 9430 | Exhaust manifold - RH |
| 49 | W714869 | Exhaust manifold stud - RH (8 required) |
| 50 | 9448 | Exhaust manifold gasket - RH (2 required) |
| 51 | 12K073 | Camshaft Position (CMP) sensor - LH |
| 52 | 12K073 | CMP sensor bolt - LH |
| 53 | 12K073 | CMP sensor bolt - RH |
| 54 | 12K073 | CMP sensor - RH |
| 55 | 6049 | Cylinder head - RH |
| 56 | 12405 | Upper spark plug (8 required) |
| 57 | 18663 | Heater coolant inlet fitting |
| 58 | W701571 | Heater coolant inlet fitting bolt |
| 59 | 6065 | Cylinder head bolt - RH (10 required) |
| 60 | 6250 | Camshaft - RH |
| 61 | W714203 | Camshaft bearing cap bolt - RH (10 required) |
| 62 | 6B284 | Camshaft bearing cap - RH (4 required) |
| 63 | 6B280 | Front camshaft bearing cap - RH |
| 64 | 6C683 | VCT system oil filter |
| 65 | 6C524 | Camshaft phaser and sprocket - RH |
| 66 | 6279 | Camshaft phaser and sprocket bolt - RH |
| 67 | 6564A | Exhaust rocker arm and shaft assembly - RH |
| 68 | 6564B | Intake rocker arm and shaft assembly - RH |
| 69 | 6582 | Valve cover - RH |
| 70 | 6582 | Oil fill cap |
| 71 | 12286 | Ignition wire - RH (4 required) |
| 72 | 6A666 | PCV valve |
| 73 | 6K817 | PCV tube |
| 74 | 12C508 | Engine wiring harness |
