Apply Chemical or load symbols
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
The apply chemical or load symbols are used to show where to apply which type of chemical or load to carry out a procedure step.

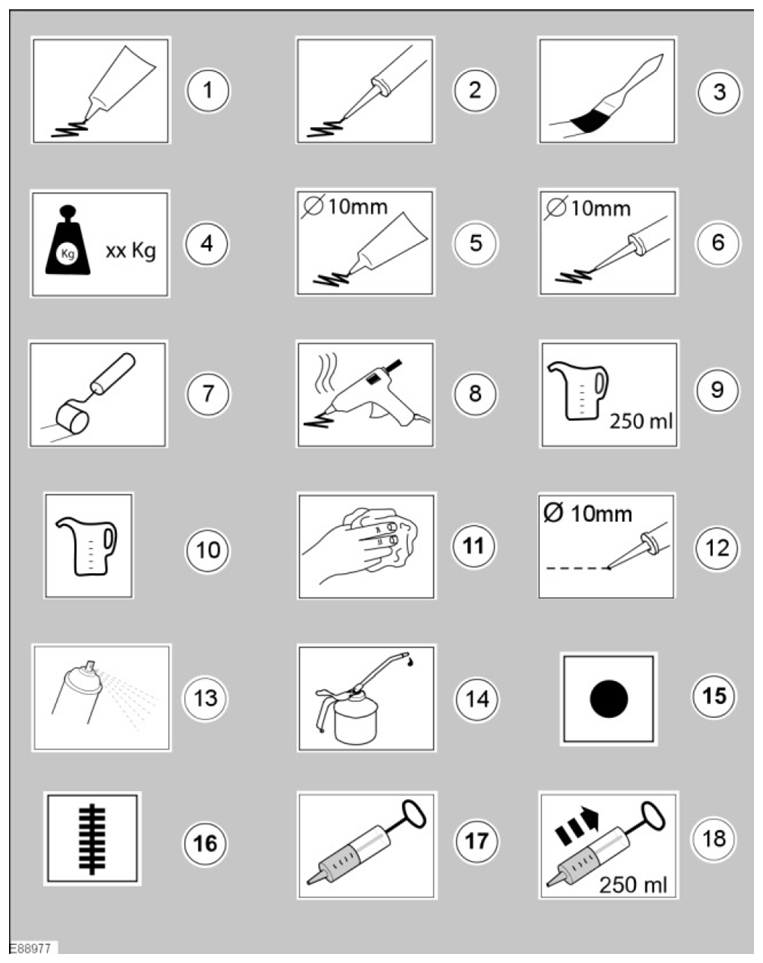

| Item | Description |
|---|---|
| 1 | Apply the substance from the specified tube |
| 2 | Apply the substance from the specified cartridge |
| 3 | Apply the specified chemical with a brush |
| 4 | Apply the specified load to the specified component |
| 5 | Apply a bead with a specific diameter from the specified tube |
| 6 | Apply a bead with a specific diameter from the specified cartridge |
| 7 | Apply the specified chemical with a roller |
| 8 | Apply hot glue to the specified component |
| 9 | Apply the specified amount of fluid from the fluid can |
| 10 | Apply fluid from the fluid can |
| 11 | Clean the specified component with the specified material |
| 12 | Apply a broken bead from the specified tube |
| 13 | Apply the specified chemical from a spray can |
| 14 | Apply the specified lubricant to the specified component |
| 15 | Apply spot welds to the specified component |
| 16 | Apply a continuous weld to the specified component |
| 17 | Handle the fluid using a syringe |
| 18 | Extract the specified amount of fluid using a syringe |
