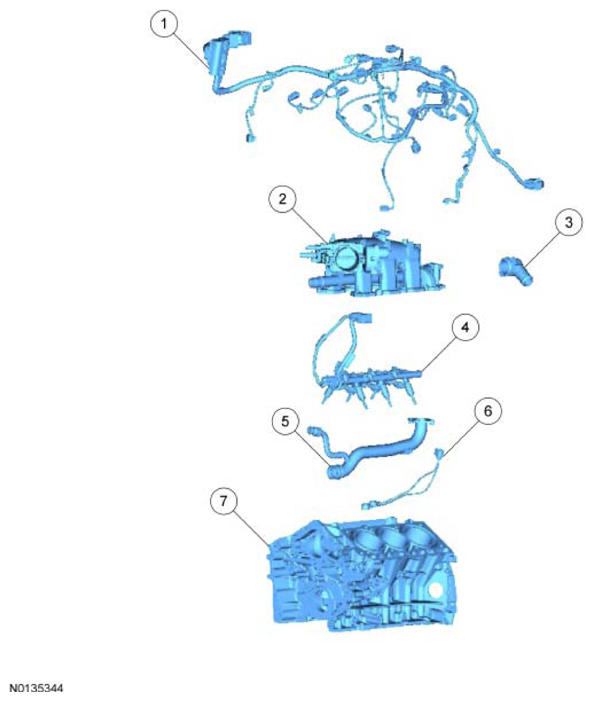

Engine Upper
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Part Number |
Description |
| 1 |
12C508 |
Engine control harness |
| 2 |
9425 |
Intake manifold |
| 3 |
8594 |
Thermostat housing |
| 4 |
9D280 |
Fuel rail |
| 5 |
9N271 |
Coolant tube |
| 6 |
12A699 |
Knock Sensor (KS) |
| 7 |
6010 |
Cylinder block |
